Sarco ppec 1" *all ss* pressure powered condensate pump

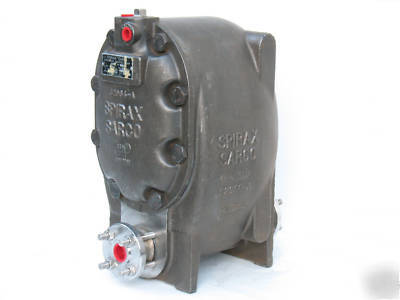

ITEM: SARCO Model# PPEC (SARCO Stock# 69006) Low Profile Pressure Powered Condensate/Liquid Pump, 1" NPT Inlet & Outlet Connections (the SS stud-mounted threaded flange assemblies at the bottom inlet and outlet are the factory supplied SS wafer check valves which ARE part of this pump and ARE included), Cast Stainless Steel Body (Casting Institute Designation CF8M Stamped on Body), 1/2" NPT Operating Pressure Inlet (front face & top of pump), 3/4" NPT Exhaust (top of pump) Outlet, Stainless Steel Wafer Check Valves, CAN BE AIR OR STEAM POWERED, SUITABLE FOR PUMPING CONDENSATE AND ANY LIQUID WITH SPECIFIC GRAVITY BETWEEN 0.9 TO 1.0 (SEE ADDITONAL SPECIFICATIONS BELOW).
ATTENTION: THIS IS AN **ALL STAINLESS STEEL** SARCO PPEC PUMP. THIS PUMP HAD BEEN IN CLEAN STEAM SERVICE AT A TOP PHARMACEUTICAL COMPANY AND IS EXACTLY THE TYPE OF PUMP INDICATED FOR CRITICAL SERVICE IN BIOTECH, PHARMACEUTICAL, FINE COSMETICS AND FINE CHEMICAL MANUFACTURING. IT IS IN EXCELLENT CONDITION AND HAD BEEN IN SERVICE FOR ONLY A FEW YEARS AND HAD BEEN VERY WELL MAINTAINED. A SS SARCO PUMP IS A TRULY RARE FIND AND WE DOUBT THAT YOU WILL FIND A SIMILAR PUMP IN THIS CONDITION AT THIS PRICE.
- Max. Operating Pressure (PMO) 125 psig (9 barg)
- Minimum motive pressure required: 5 psig (0.34 barg)
- Specific Gravity of pumped liquid: - 0.9 to 1.0 sp. gr.
- Filling head recommended above pump is 6" (152 mm)
- PMA 125 psig /0-450 F 9 barg/0-232 C Max. allowable pressure
- TMA 450 F/0-125 psig 232 C/0-9 barg Max. allowable temperature
- Pump discharge per cycle: 4.0 gal (15.14 l)
- Maximum instantaneous discharge rate: 30 gpm (1.9 l/s)
- Steam Consumption (when steam is used as the motive force): 3 lbs. of steam per 1000 lbs. of liquid pumped.
WHAT THE MANUFACTURER STATES ABOUT THE PRODUCT:
"Spirax Sarco Pressure Powered Pump is a non-electric pump which transfers high temperature condensate or other liquids from a low point, low pressure or vacuum space to an area of higher pressure or elevation. This self-contained unit uses steam, compressed air or any other suitable pressurized gas as the pumping force. The standard pressure powered pump will handle liquids from 0.9 to 1.0 specific gravity."
CONDITION: Used, in EXCELLENT CONDITION.
SOURCE: From the decommissioned equipment of a large pharmaceutical manufacturing facility, CAREFULLY DE-INSTALLED AND TRANSPORTED TO OUR WAREHOUSE BY US.
SELLS ELSEWHERE FOR APPROX.: $3,500+ Used/Reconditioned (IF it can be found), $7,700 New (as listed here w/ STAINLESS STEEL BODY AND STAINLESS STEEL CHECK VALVES, PPEC 1" NPT model, SARCO Part# 69006).
