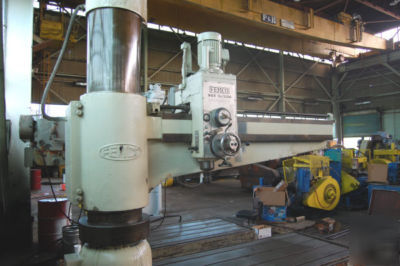

8'19" femco radial drill #23816


New 1980, Serial No 80-2507, Model WRD75/2500,
Plain Base - Power Rapid Traverse to Head
Power Arm Elevation - Power Clamping
Arm Length............................. 8'
Column Diameter........................ 23.625"
Horizontal Head Travel on Arm.......... 82.625"
Vertical Arm Travel on Column.......... 32.25"
Spindle Travel......................... 15.75"
Drilling Capacity, Solid Steel......... 3"
Drilling Capacity, Cast Iron........... 3.625"
Tapping Capacity, Solid Steel.......... 3.5"
Boring Capacity, Solid Steel........... 7.875"
Boring Capacity, Cast Iron............. 11"
Spindle-Nose to Base, Minimum.......... 23.625"
Spindle-Nose to Base, Maximum.......... 70.875"
Base Working Surface, W x L............ 49.625" x 141"
Base Height............................ 11.875"
Spindle Nose Diameter.................. 3.375"
Spindle Taper.......................... #5 MT
(16) Spindle Speeds, Range............. 20 to 2180 RPM
(8) Spindle Feeds, Range............... .0015 to .04 IPR
Main Motor, Horsepower................. 10 HP, 440 Volts
Elevation Motor, Horsepower............ 5 HP
Clamping Motor, Horsepower............. 2 HP
Weight, Approximately.................. 19800 LBS
PRICE: F.O.B. OUR WAREHOUSE............ $14,500.00
