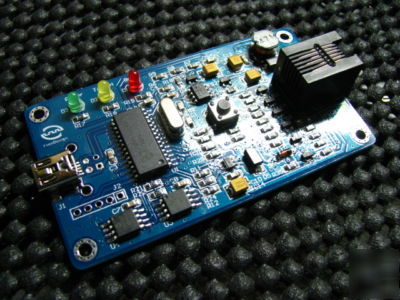

Pickit 2 module + ready board for dspic/PIC24H/pic
Software and Driver download on /pickit2/
Pickit2 is the high-speed programmer & Debugger designed specially for development programming of PIC single chip microcomputer. The product is featured with small volume, low power consumption, high reliability as well as easy and convenient operation.
Pickit2 is applicable for almost all PIC10/12/16/18/24 and dspic30/33 FLASH series Microcontroller's Programming.
Pickit2 Development Programmer/Debugger" is a low-cost development tool with an easy to use interface for programming and debugging Microchip Flash families of microcontrollers.
Pickit2 is a USB based ICSP (In Circuit Serial Programming) programmer. Since its first release, Microchip has opened all resource of Pickit2 to the public, which includes all software source code and hardware schematics.
PIC KIT2 in MPLAB 8.15 Support Programmers:
Tip: Devices with preliminary support will have a " * "
PIC KIT2 in MPLAB 8.15 Support Debuggers:
Devices Debuggers need ICD Headers if have a " # "
HCS200 HCS201 HCS300 HCS301 HCS320
HCSxxx File -> Import HEx Notes:
The first line only may be imported from SQTP
*.NUM files generated by the KEELOQ tool in
!!IMPORTANT!! - MCP250xx devices are OTP and can only be
Connections for MCP250xx devices
PICkit 2 Pin MCP Device Pin (DIP)
- The MCP device MUST be powered from PICkit 2!
NOTE: Other supported voltage grades are listed in parentheses
next to the device. Select the "LC" part number to program
24LC128 (AA)(FC) 25LC640A (AA)*
24LC1025 (AA)(FC) 25LC512 (AA)
PICkit 2 Pin 11LC Device Pin (DIP)
! 11LC devices may not program properly below 3.6V VDD.
This is a limitation of the PICkit 2 AUX IO pin.
PICkit 2 Pin 24LC Device Pin (DIP)
(5) PGC 6 SCL (driven as push-pull)
(6) AUX 5 SDA (requires pullup)
! 24LC devices may not program properly below 3.6V VDD.
PICkit 2 Pin 25LC Device Pin (DIP)
PICkit 2 Pin 93LC Device Pin (DIP)
