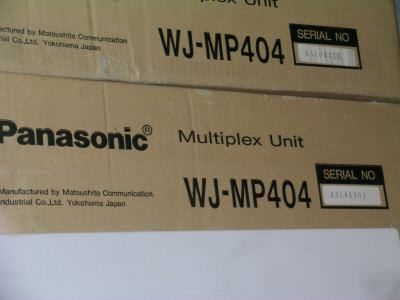

Panasonic wj-MP404 data multiplex unit pan tilt mechani
DATA MULTIPLEX UNIT for PAN TILT MECHANISMS
The unit offer 4-channel multiplex of data supplied from a system controller such as the WV-CU300 (optional), onto the video signal. In addition, the unit multiplex the vertical timing pulse onto the video signal, providing vertical genlock for roll-free switching. The unit feature control data separation, and in a master/slave system configuration unit provide control of up to 64 cameras.
4-channel multiplex control signal encoder/decoder
Vertical drive synchronization over coaxial cable (for WV-BP120/BP310/BP510/CP220/CP410/CP610/CL350 series cameras, and WV-CS604A/CS404/BS304 integrated camera devices)
Built-in cable compensation for each camera input
