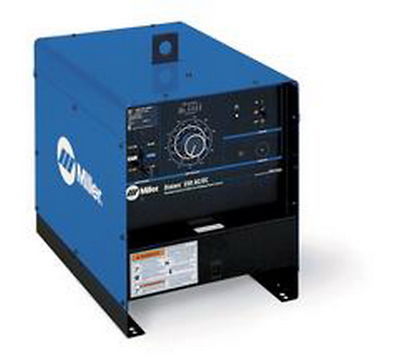

Miller dialarc 250 ac dc stick welder 907015
The Dialarc 250 AC/DC offers superb performance and versatility in a flexible and easy-to-use Stick welding package. Its low amperage range does the job for sheet metal work. But its wide current control range and AC/DC operation make an effective combination for production line work, plant maintenance, garages and job shops. Simply dial in the desired setting on the unit's electrical amperage control and you're ready to start welding. The straight forward operation makes the Dialarc 250 AC/DC a natural choice for vocational training schools. The Dialarc 250P AC/DC offers more economical operation with built-in power factor correction for lower primary power demand.
* Single-dial current control simplifies weld adjustment.
* Single-phase Stick welding power source.
* Industrial, weld output stud terminal cover.
* Single control knob with remote capability.
* Superior 6010 and 7018 Stick welding performance.
* Forced-draft cooling fan for extended life.
* Air Carbon Arc Cutting and Gouging ( CAC-A ) ( 3/16" carbons ).
RHC-3 Remote Hand Amperage Control: Includes 20 ft. ( 6m ) cord and plug. Remote Control Facilities ( 041 111 ) required.
RFC-23A Foot Control: Foot pedal provides remote current and contactor control. Includes 20 ft. ( 6m ) cords and plugs.
RF-10 Remote Current Control Facilities: Includes receptacle, remote standard switch and wiring.
RHC-3 Remote Hand Amperage Control: Includes 100 ft. cord and plug. Remote Control Facilities ( 041 111 ) required.
Stick Welding Leads: Includes 50 ft. 2/0 electrode cable and holder, 50 ft. work cable and clamp, 350 A, 100% Duty Cycle.
Amps Input at Rated Output 60 Hz.
