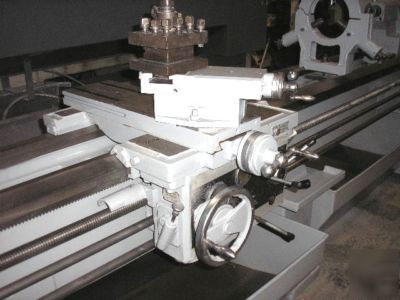

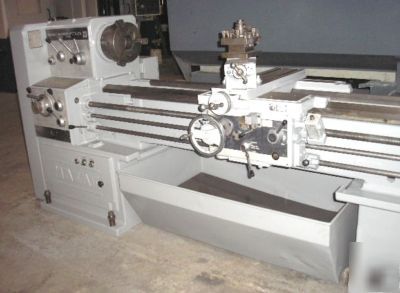

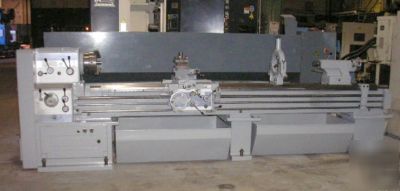

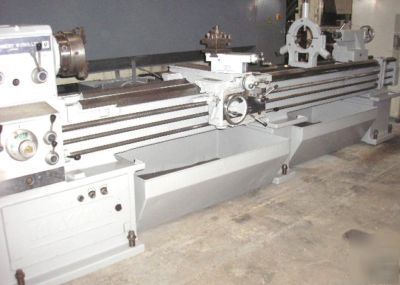

Mazak gap type 21"/28" x 120" engine lathe, leblond
SWING OVER BED..................................... 20-7/8"
SWING OVER CROSS SLIDE...................... 13-1/8"
SWING IN GAP........................................... 28-1/8"
MAX DISTANCE BETWEEN CENTERS........ 120"
WIDTH OF BED...........................................14-1/2"
HOLE THROUGH SPINDLE..................................3-1/8"
SPINDLE NOSE.......................................... D-1-8"
NUMBER OF SPEED CHANGES.......................... 12
SPINDLE SPEEDS...................................... 25 - 1500 RPM
NUMBER OF FEED CHANGES............................. 80
RANGE OF FEEDS PER REVOLUTION........ 0.0024 - 0.037"
THREADING RANGE ................................................. 4 -56 TPI
THREADING RANGE (METRIC)................................... .5 - 7.5mm
CARRIAGE COMPOUND REST TOP SLIDE TRAVEL.... 4-9/16"
CROSS SLIDE TRAVEL............................................. 10 5/8"
