Johnson controls P100AP-201 encap. pressure control

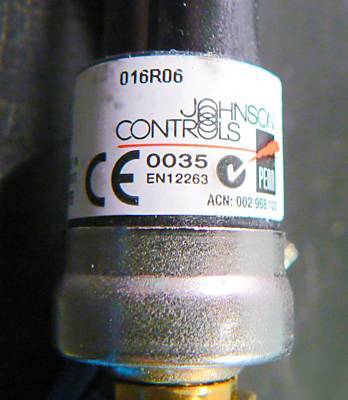

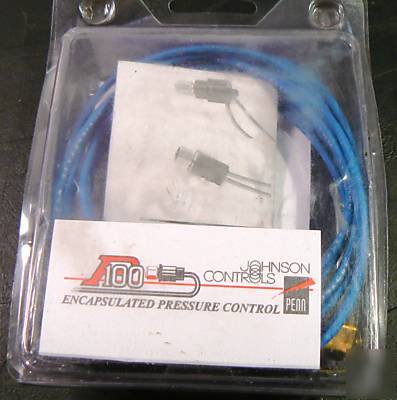

JOHNSON CONTROLS P100AP-201C ENCAPSULATED PRESSURE CONTROL NIB.
Encapsulated Pressure Switches
P100 Series switches are encapsulated, nonadjustable, SPST, direct mount switches for use with noncorrosive refrigerants. The switches are available with automatic reset in both open low and open high configurations and manual reset with open high action.
compact size and light weight allow for direct mounting
trip-free manual reset (manual reset models)...contacts cannot be overridden by continued depression of the reset button
use with all non-corrosive refrigerants

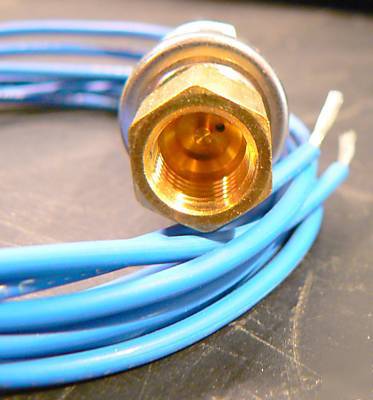

encapsulated switch, dust tight 1/4 in. female flare fitting with built-in Schrader type depressor is standard

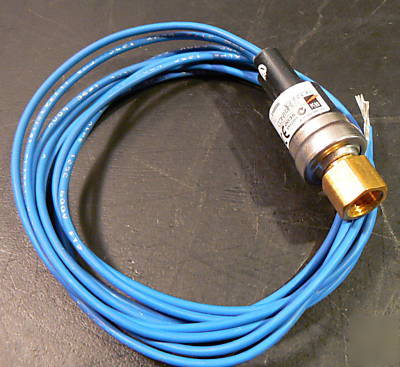

electrical connections are made to 48 in. leads
low limit, high limit, and fan cycling control in commercial refrigeration
Switch Action: Open On Pressure Drop

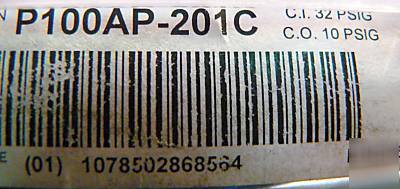

Setting: OPENS 10 (69) CLOSES 32 (221) psig (kPa)
Replaces: Ranco MPL-7011 / Robertshaw 3100-050
