Fette high speed bi-layer tablet press

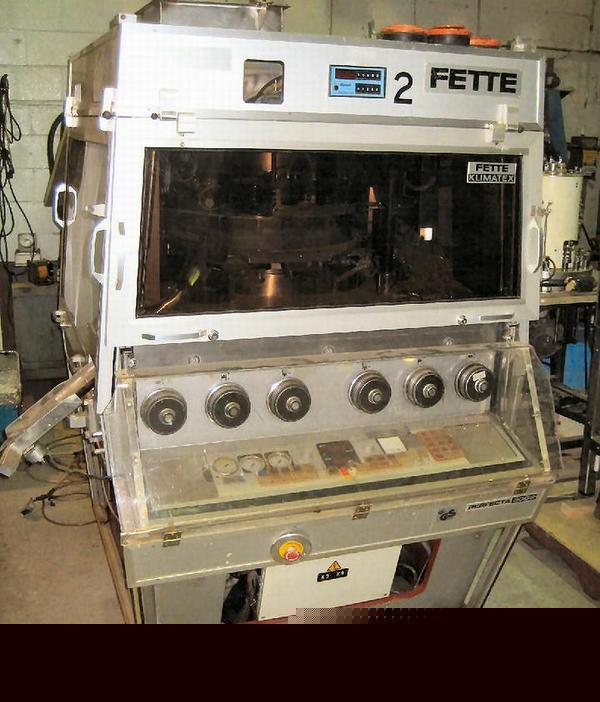

Fette Perfecta 3002 HI-Speed 45 station bi-layer tablet press
This is a 45 station high speed bi layer tablet press,model Perfecta 3002, new in 1982, from a global pharmaceutical company, that was last used to tablet Chewable Vitamins.
Some specifications on this machine are:
* Maximum compression force of 2.5 tons with maximum initial compression of 1/2 ton.
* Maximum tablet thickness 8.5 mm
* Maximum depth of fill 18mm
* Rated at 405,000 tablets per hour
* Pitch circle 508mm (about 20 )
* Speed of die plate 30-75 per minute
* die- 30.16mm (about 5/8 )
* depth of die 22.22 mm (about 7/8 )
* punch body is 19mm ( about 3/4 )
* Upper and Lower Punch length is 133.6mm (about 5-1/4 ) with an upper punch penetration of 2-8mm (about 1/8 -5/16 )
* The Required Floor space is approx 4' x 4' and the approx weight of the machine is 6000 lbs
