> Esab aristo mig U5000IW welder, 460V, 3 ph 0459230886
Esab aristo mig U5000IW welder, 460V, 3 ph 0459230886

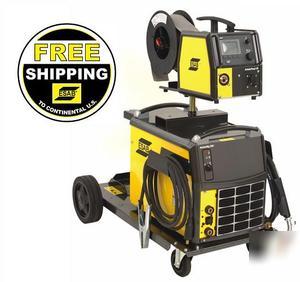

ESAB Aristo Mig U5000iw Welder, 460V, 3 Phase, 60 Hz - 0459230886
AristoMig U500 is ideal when it comes to efficient production or prefabrication of high alloyed materials with a very high demand on the welding performance. The power sources are compact and sturdy pieces of equipment with a chassis made of extruded aluminium sections: Alutech . This is a robust material that withstands rough treatment. The power sources are based on inverter IGBT technology that provides reliable equipment with outstanding welding characteristics. The control and communication CAN-bus system means less cables, which in turn increases operational reliability.
AristoMig U500 allows the choice of the following processes; MIG/MAG, pulse MIG , TIG, pulse TIG, MMA and Carbon Arc Gouging. The choice of processes is related to the different control panels (see related AristoFeed 30-4 and 48-4)
* Multi-process equipment; MIG/MAG, pulse MIG, MMA, TIG, Pulse TIG and Carbon Arc Gouging.
* Reliable and smooth starts and ends supported by efficient Hot-start and crater fill functions.
* Efficient Man-Machine Communication by the userfriendly control panel U6 or AristoPendant U8.
* Wide range of pre-programmed synergic lines. AristoPendant U8 provide the facility to define and store customized synergic lines for any material or gas combinations.
* Memory for 10 sets (U6) or 99 sets (AristoPendant U8) welding parameters.
* ESAB LogicPump ELP, secures automatic start of water pump by connection of a water cooled welding gun at the wire feeder or a water cooled TIG torch.
* TrueArcVoltage System, measures the correct arc voltage value independent of the length of the connection cable, return cable or welding gun.
* Dust filter to handle tough and dirty environments and to avoid grinding-dust and metal particles inside the chassis.
* Aristo SuperPulse , the welding process with the ability to control the heat input (AristoPendant U8 only).
AristoPendant U8 for advanced applications
AristoPendant U8 support a quick access to synergic setting. More than 100 pre-programmed synergic lines are available.Welding based on pre-programmed synergic data reduce the preparation before start to a minimum.
The memory provides additional functionalities. The capacity to store up to 99 welding parameters which can be recalled
whenever needed. A number of soft buttons with flexible functions provide direct access to Hot start, crater fill, 2/4-stroke etc.
Power factor @ maximum current
Dimensions: (with cooling unit)
Insulation class (main trafo.)
Water cooling unit (water cooled version only):
2500w @ 40 C W, .40 Gal/Min, 1.5 l/min
Multi Voltage unit: Add on or separate
3 ph, 208/230/400/460/475/575 V, 50/60 Hz
