Ip office pbx cell multi line phone - pc call recorder
IP OFFICE PBX CELL MULTI LINE PHONE - PC CALL RECORDER

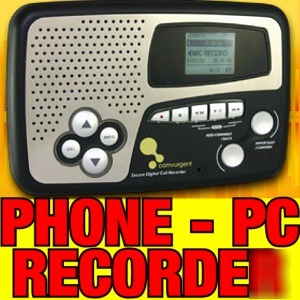

Universal Phone To PC Recorder / Call Manager
6 1/4" x 4" x 1" - 160mm x 105mm x 25mm
Record From Single Line & Multi-Line (PBX)
Auto Record - Voice Activated Or Line Activated
Use As Stand Alone Recorder Or Transfer Calls To PC
Sophisticated Call Management PC Software
340 Hours Of Audio Storage On 2GB SD Memory Cards
Say goodbye to those nasty tape based recorders with the new Secure Digital Telephone Call Recorder.
It s a breakthrough in price-performance and functionality for the user wanting to record telephone calls on a single line telephone, IP (Internet) phone or multi-line office (PBX) phone system. It has many of the features available on advanced PC based systems and also allows you to transfer recordings to your PC for playback, archive and management at your convenience.
The SD Recorder is ideal for small/home based businesses and individual users in a business/corporate environment. With over 340 hours of storage on a standard 2Gb memory card, the SD Recorder is a perfect mix of stand-alone (no PC required) functionality with convenient PC management if and when required. Includes XtR Desktop call management software and 1GB SD card!
Secure Digital Telephone Recorder key features include:
Secure digital call recording, up to 340 hours recording on one memory card.
Caller ID (with RJ-11 connection), digits dialed, time, date, duration and comments stored.
Battery or AC adapter powered.
Auto start/stop record using line current detect (with RJ-11 connection) or voice detect.
Supplied with XtR Desktop software for call search/playback and management on PC.
Connects directly to single line analog phone via RJ-11 jack
Connect to digital/IP or multi-line PBX telephone handset cords.
Built-in microphone for room/memo recording.
102 x 64 dot LCD displays all important call information and lists recent calls.
Rapid search and playback controls.
Playback via built-in speaker or headset socket for privacy (also via PC with software supplied).
Security features to prevent unauthorized access.
OPTIONAL BLUETOOTH ADAPTER IS NOT INCLUDED / NOT AVAILABLE
The Secure Digital Call Recorder comes complete with XtR Desktop software, installs in minutes, and offers the best value digital recording solution on the market. Upload calls from the SD card to PC. The XtR software provides highly sophisticated call management features. Archive Storage, Search, Recall, Playback, Export & File Sharing Made Easy.
XtR Desktop - Management /Playback Features:
Level indicator gives call activity
Drag n' drop curser rapidly locates key points in conversation
Pause & Continue manual controls
Restrict User from Stopping, Pausing, Deleting or Exporting Recordings
Caller ID or dialed digits
Email recordings to colleagues (as .wav file or compressed file)
One touch Convert to .wav file format
Dimensions - 6 1/4" x 4" x 1" - 160mm x 105mm x 25mm
Power - 2xAA batteries and/or 5vDC AC Adapter (supplied)
Analog line In/Out (RJ-11)
Telephone handset cord In/Out
Headset (for privacy listening)
Built-in speaker (for playback)
Built-in microphone (room recording).
Fast forward/next recording
Up select (menu and volume)
Down select (menu and volume)
Direct Analog line connection
Behind PBX Analog line connection
Handset (curly cord) connection for digital and IP
Caller ID Bellcore and BT standard
Dialed digits (DTMF) detection
Start / Stop of Recordings
Auto start/stop recording by line current detect
Auto start/stop recording by VOX level
Line current detect (series telephone)
VOX detect - line (any parallel connected phone)
VOX detect handset (digital/IP phone)
Separate start/hold/stop levels and timings for VOX
Date, time and duration of call
Caller ID or digits dialed
Comments (user programmable and selectable comments)
Memory Type: Secure Digital (SD) card
2Gb = 340 hours / 1Gb = 170 hours
Storage Format XtR format compatible with call management software
Conversion to .wav etc. via software supplied
Low memory storage warning - 80%
Auto delete of non important calls on 95% memory full
Pin number access option for delete recordings, setup menu and software upgrade
Voice trigger threshold start L/M/H
Voice trigger threshold maintain L/M/H
Duration to drop recording (seconds)
Auto delete at 95% full (on/off)
Allow deletion without PIN (on/off)
Restore factory setting (yes/no).
