Hampden Dissectable Transformer: HC-1290

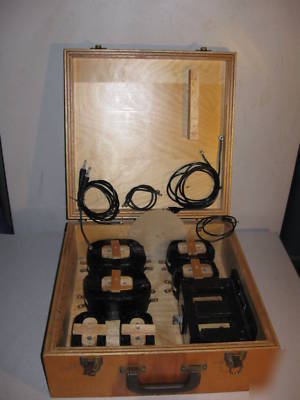

The Hampden Model 1290 Dissectible Transformer is a versatile device for teaching transformer principles. It is also useful in the laboratory or shop when a special transformer, DC choke or AC reactor is needed.
The unit consists of a dissectible, three-legged core and a complement of separate coils. The core consists of silicon steel laminations with an aluminum frame making a strong, lightweight structure. The top portion of the core is removable to enable the various coils to be placed on the core. The interfacing between the two core pieces is carefully machined to minimize magnetic leakage. A stud and wing nut hold the core pieces securely together. A complement of core gap-spacers are also provided for operation as a choke or reactor. Furnished complete with cords.
