Bakers bco-G2 convection oven, full size, gas, double d
Convection Oven, Full Size, Gas, Double Deck, Cyclone Series, 120,000 BTUH
Limited 1-year parts, labor & door warranty -view pdf
Cyclone Convection Oven, full-size, gas, double deck, rotary controls, 60 min. timer, 2-speed motor, s/s independent doors w/double pane thermal glass, (5) racks w/11 positions, s/s top, front & sides, 8-1/4" s/s legs, stacking kit, 60,000 BTU ea. oven
* Door interlock switch automatically turns the fan and burners off when the oven door is open. A manual rotary switch will turn the
* fan on when the door is open for quick cool-down. The 60 minute timer has a continuous ring alarm with manual shut-off. The indicator light glows when the burners are on
* The oven interior measures 29" wide (737mm) by 20" high (508mm) by 22 1/4" deep (567mm). The cooking chamber is porcelain enamel over heavy gauge steel with removable 11-position rack guides with 1 5/8" spacing (41mm) and 5 heavy-duty adjustable chrome-plated racks
* The oven exterior measures 39" wide (991mm) by 39" deep without handles (991mm) and 41 3/8" deep with handles (1051mm) by 32" (813mm) high. Front, top, sides and trim are constructed with stainless steel. Single oven legs are 31 3/8" tall (797mm) casters and 27 5/8 (702mm) with adjustable bullet feet finished with Durable Black Powder Coating
* Dual doors are 60/40 split-type with double-pane thermal glass, independent operation, stainless steel seals and double mounted "Cool Touch" handles. Doors are fabricated with stainless steel inside-and-out, and fully insulated with 2" of industrial grade insulation
* Energy efficient 60,000 BTUH oven combination direct/indirect forced air heat system in natural or LP gas
* Electronic temperature control
* Double-pane thermal glass door windows
* 60-Minute continuous ring timer with manual shut-off
* 150 F (65 C) to 550 F (288 C) temperature range
* 1/4 HP air-cooled two-speed fan motor
* Burners-on and temperature-ready indicator lights
* Porcelain enamel oven interior
* 11-Position removable rack guide with 1 5/8" spacing
* 5 Heavy-duty, positive-stop, chrome-plated wire racks
* Stainless steel front, top & sides
* Black Powder Coated legs with adjustable bullet feet
* Stainless steel, 60/40 split independent operation doors, with dual mounted handles
* Stainless steel door seals
* Separate gas and electric connections required for stacked ovens
* Gas - 1/2" NPT rear connection
* Manufacturer: Bakers Pride Oven Company
* Depth: 39" (without handles)

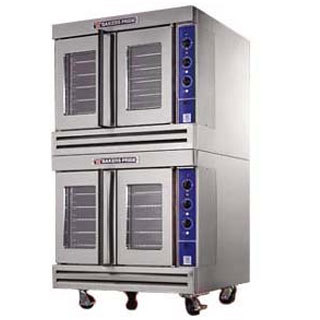

* shown with optional casters
