Telemecanique electronic pressure switch xml-F010E2046

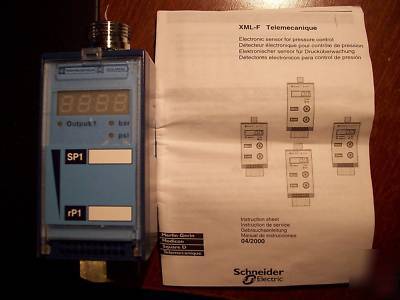

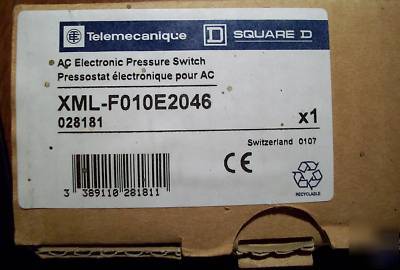

Telemecanique XML-F010E2046 Electronic Pressure Switch 0-145 psi
http://www.schneider-electric.us/products-services/product-detail/?event=productDetail&countryCode=us&partNumber=XMLF010E2046 Features and Specifications
XMLF w/digital display - rated pressure 0 - 145 psi, 7/8-16 UN2A - AC Only
Configurable IEC OsiSense Electronic Pressure Switches XMLF
5gn (25 - 200 Hz) and 35gn (60 - 2000 Hz), conforming to IEC 68-2-6
50gn, conforming to IEC 68-2-27
Adjustable from 5 to 500ms, in increments of 1ms
Minimum Differential at Low and High Setting (per stage)
Maximum Differential at High Setting (per stage)
< +/-0.03% of the measuring range/ C (of the sensitivity)
<= 0.6% of the measuring range (Digital) or <= 0.6% of the measuring range, output offset < 200mV (Analog)
IP67 (conforms to IEC/EN 60529) and NEMA 4/6/12/13
<= 0.5% of the measuring range
UL Listed File: E164865, CSA Certified File: LR44087, CE Marked
Hydraulic Oils, Air, Fresh Water, Sea Water and Corrosive Fluids from 5 to 176 F (-15 to +80 C)
Ambient Air Temperature for Operation
Component Materials in Contact with Fluid
Stainless steel fluid entry type AISI 303, Viton gasket, Ceramic pressure measuring cell
