Stainless surge tank

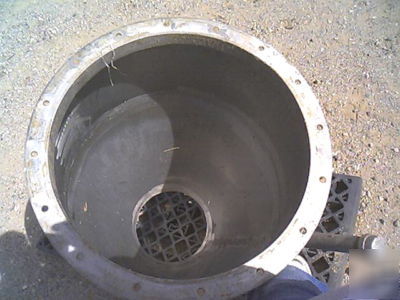

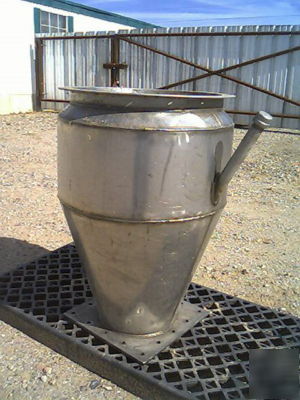

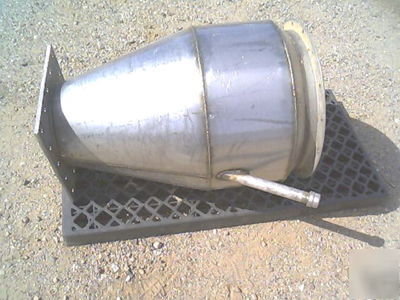

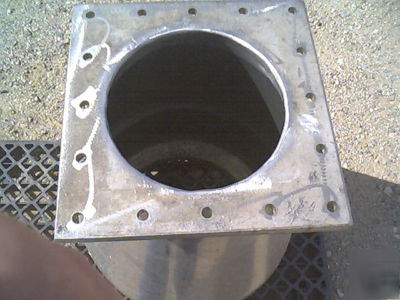

THIS IS A 5 CUBIC FOOT SURGE TANK. THE STRAIGHT WALL SECTION IS 21 IN DIAMETER X 10 THE CONE IS 19 IN HEIGHT WITH A ROUND OUTLET DIAMETER OF 10 . THE TOP INLET IS FLANGED TO A ROUND 18 ANGLE FLANGE. THE DISCHARGE IS A SQUARE 15 FLANGE THICK. MATERIAL IS 304 STAINLESS 10 GAGE. THERE IS A BLEEDER PIPE TO ADD AIR FOR POOR FLOWING MATERIALS.
