Fluke 434 handheld power quality analyzer meter 434B

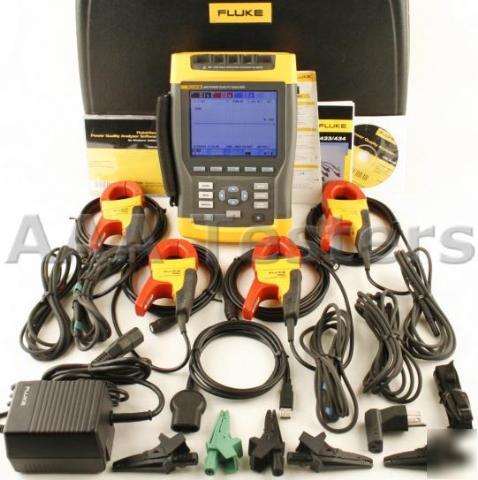

* Fluke 434 HandHeld Power Quality Analyzer w/ Options:
* (4) Fluke i400s AC Current Clamp
* Fluke Industrial Alligator Clips (4 Black - 1 Green)
* (5) Fluke Banana Test Leads
* Fluke PM9080 Optically Isolated RS232 Cable
* Flukeview Power Quality Analyzer Software SW43W
* Hard Copy Getting Strated Guide
Fluke 434 HandHeld Three-Phase Power Quality Analyzer
Includes Four i400s AC Current Clamp, Hard Carrying Case, Carrying Strap & Complete Accessories!
These three-phase power quality meters help you locate, predict, prevent and troubleshoot problems in power distribution systems. These easy-to-use power quality tools are a must have for any person who maintains or troubleshoots three phase power. The new IEC Class A standards for flicker and power quality are built right in to take the guess work out of power monitoring.
* Frontline troubleshooting quickly diagnose problems on-screen to get your operation back online
* Predictive maintenance detect and prevent power quality issues before they cause downtime
* Quality of service compliance validate incoming power quality at the service entrance
* Long-term analysis uncover hard-to-find or intermittent issues
* Load studies verify electrical system capacity before adding loads
* Energy assessments quantify energy consumption before and after improvements to justify energy saving devices
* Troubleshoot real-time: Analyze the trends using the cursors and zoom tools even while background recording continues
* Highest safety rating in the industry: 600 V Cat IV/1000 V CAT III rated for use at the service entrance
* Automatic transient mode: Captures 200 kHz waveform data on all phases simultaneously: Up to 6 kV
* Fully Class A compliant: Conduct tests according to the stringent international IEC 61000-4-30 Class A standard
* Measure all three phases and neutral: With included four current probes
* AutoTrend: Every measurement you see is always automatically recorded, without any setup
* System-monitor: Up to seven power quality parameters on one screen according to EN50160 power quality standard
* Inrush mode: For troubleshooting nuisance circuit breaker tripping
* View graphs and generate reports: With included analysis software
* Logger function: Configure for any test condition with memory for over 400 parameters at user defined intervals
* Mains signaling: Measure interference from ripple control signals at specific frequencies
* Battery Life: Seven hours operating time per charge on NiMH battery pack
* Warranty: Rugged, handheld troubleshooter with 90 Day warranty
4 voltage and current (3 phases + neutral)
200 kS/s on each channel simultaneously
DC, 1..50; (Off, 1..49) measured according to IEC 61000-4-7
Depends on clamp scaling and voltage
5% n x 2% or reading, 10 counts
5 readings/sec continuous sampling per channel
1800 min, max and avg points for each reading
50, shared memory divided between logging, screens and data sets
Value is measured over 1 cycle, commencing at a fundamental zero crossing, and refreshed each half-cycle
