Elkon concrete batching plant capacity 35M3/h catalog
35m3/hour vibrated concrete production capacity
Fully Automatic Stationary Concrete Batching Plant
The Capacity of Aggregate Silo (4x7,5=30 m3)
The Capacity of Aggregate Weight Batcher (0-2000 kg)
Loading Type of Aggregate to the Mixer: Skip

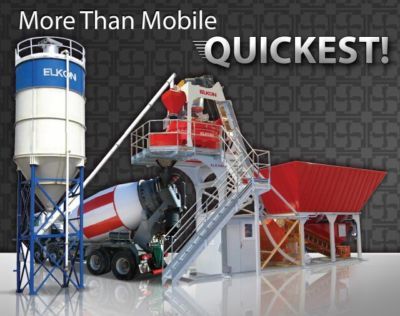

ELKON QUICK MASTER -35 Fully Automatic Concrete Batching Plant Core Units
1. aggregate storage bunker 2. aggregate weight hopper 3. aggregate weighing conveyor
4. Aggregate bucket & skip hoist 5. ELKON Pan mixer 6.cement weight batcher
7. water weight batcher 8. additive weight batcher 9. supporting legs and ladder
10. control cabin 11. cement silo
Working Position of ELKON QUICK MASTER -35
Fully Automatic Concrete Batching Plant (Aggregate loading with concrete ramp)
Fully Automatic Concrete Batching Plant
(Aggregate loading with automatic aggregate prefeeding system) (OPTIONAL)
Working Position of ELKON QUICK MASTER -35 Fully Automatic Concrete Batching Plant
(Aggregate loading with metal ramps) (OPTIONAL)
Transport Position of ELKON QUICK MASTER -35
MORE TECHNICAL INFORMATION YOU CAN FIND HERE
* Less transportation costs. Standard configuration can be transported by only 1 unit 40 Open Top Container (without aggregate silo panels).
You can get bigger capacities with less investment cost
