Delta fully programmable advanced application controllr

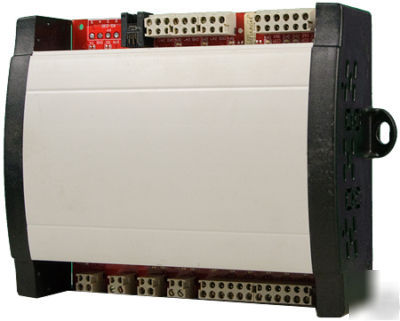

Delta DAC-633 Fully Programmable Advanced Application Controller
The DAC-633 is a fully programmable, Native BACnet Advanced Application Controller that communicates on an RS-485 LAN using the BACnet MS/TP protocol. The DAC-633 is designed for a wide-range of applications that have small local I/O requirements. It also supports BACstats and other Delta LINKnet devices.
The DAC-633 is suitable for controlling various packaged units and equipment with small I/O requirements such as Fan Coil units, Unit Ventilators, Heat Pumps, and small Boilers or Chillers.
The fully programmable DAC-633 can be tailored to specific applications by creating and modifying BACnet objects and GCL+ programs.
- Supports 6 BACstat network sensors on LINKnet for room sensing and control or 2 Delta Field Modules on LINKnet for I/O expansion
- Actuator power terminal (24VAC) for each analog output
- Application database can be flash loaded over the network
- Controller firmware can be flash loaded over the network
- Supports Modbus capability via flash loading in the field
- Supports flash loading Modbus upgrades via hardware key
- Derived Network Addressing (DNA) for simple integration into a standard network architecture
DAC-633: 6 inputs, 3 AO s, 3 BO s
Fully Programmable Advanced Application Controller
