Agilent / hp 44470A 10-channel multiplexer test equip.

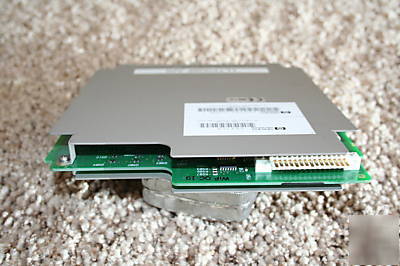

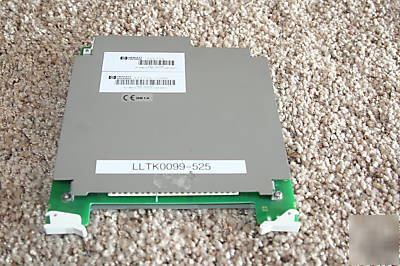

This Agilent / HP 44470A 10-Channel Multiplexer
Product Specifications Multiplexer (Option 010/HP 44470A)
Option 010 is a 10-channel multiplexer for scanning or multiple signal connections. Channels switch 2 wires (Hi and
Lo) with 2PST relays for DVM inputs and other signals up to 250V and 2A. This module can also be used to
multiplex signals to other switching functions, such as the matrix module.
Maximum Voltage: (terminal-terminal or terminal-chassis): 250 V dc, 250 Vac rms, 350 Vac peak
Maximum Current: 2A dc, 2 A ac rms
Maximum Power: 60 W dc, 500 VA ac
Channel-channel, open channel: >10^11 ohm
(50 ohm termination) 100 kHz 1 MHz 10 MHz
Insertion Loss (dB) <0.30 <0.35 <0.90
