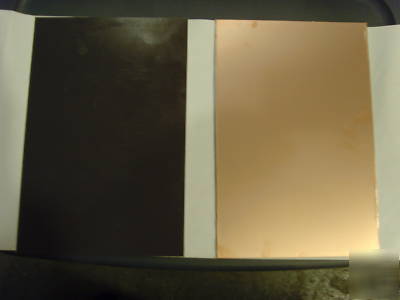

4 shts. copper clad, tlc rf & microwave laminate. 1 oz.
Tightly Controlled Dielectric Constant
Exceptional Dimensional Stability
Very High Temperature Reliability
Base Station Antennas: for GSM, UMTS, 3G, PCS, PCN, WCDMA, TD-SCDMA, EDGE, CDMA2000, HSDPA, MIMO, LTE, UMB High Power Amplifier, TMA, TMB, LNA: for GSM, UMTS, 3G, PCS, PCN, WCDMA, TD-SCDMA, EDGE, CDMA2000
Filter, Coupler, Splitter, Combiner, Mixer
Taconic has over 35 years of experience coating fiberglass fabric with PTFE (polytetrafluoroethylene). This enables Taconic to manufacture copper clad PTFE/woven glass laminates with exceptionally well controlled electrical and mechanical properties.
Taconic TLC laminates are engineered to provide a cost effective substrate. TLC laminates are suitable for a wide range of microwave applications. TLC laminates offer far superior electrical performance compared to thermoset laminates (e.g. FR-4, PPO, BT, polyimide, and cyanate ester). The construction of the laminate provides exceptional mechanical stability. The dielectric constant (Dk) is typically offered at 3.2 +/-0.05.
TLC laminates can be sheared, drilled, milled, and plated using standard methods for PTFE/woven fiberglass materials. The laminates are dimensionally stable, and exhibit virtually no moisture absorption during fabrication processes.
TLC laminates are generally ordered clad on one or both sides with 1/2, 1, or 2 oz. electrodeposited copper foil.
