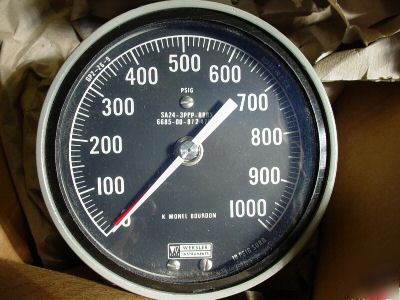

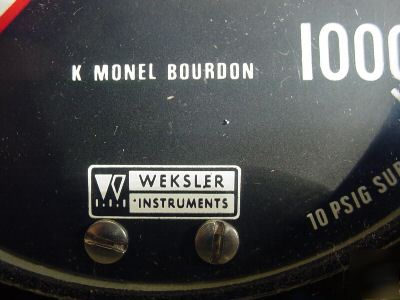

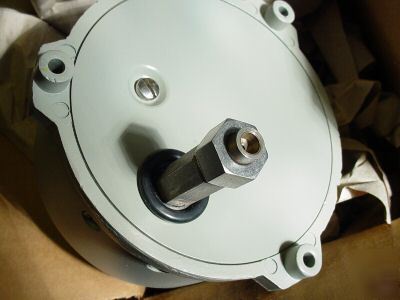

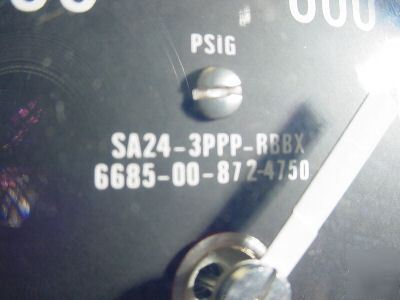

Weksler pressure gauge~k monel bourdon~
* Pressure, Vacuum & Compound Gauges
* Chemical Service Pressure Gauges
* Refrigeration or Ammonia Gauges
* Mechanical Contractors Gauges
* Pressure Gauge Case Styles
* Gauge Ordering Information
PRESSURE, VACUUM & COMPOUND GAUGES
Dial Sizes: 4 1/2", 6", or 8 1/2"
Application: For pressure and/or vacuum measurements of all gases, and liquids non-corrosive to brass or bronze.
Bourdon Tube: Phosphor bronze with silver brazed joints at socket and tip.
Socket: Brass, 1/4" or 1/2" male NPT. Bottom or back connection
Movement: Stainless steel, rotary type.
Dial: Aluminum with black figures and graduations.
Pointer: Micrometer adjustment type
Blow-out Disk: Available when specified at extra charge
Application: For pressure or vacuum measurement of all gases or liquids non-corrosive to brass or bronze.
Socket: Brass, 1/4" or 1/2" bottom or back connection.
Movement: Bronze bushed rotary type.
Dial: Black figures on non-reflecting white aluminum
Pointer: Balanced adjustable type
Blow-out Disc: Available when specified for 3 1/2" or larger gauge sizes at extra charge
Dial Sizes: 1 1/2", 2, 2 1/2", 3 1/2", 4 1/2"
Application: For steam, air, water and other media non-corrosive to brass where excessive vibration or pulsation is not encountered
Bourdon Tube: Phosphor bronze with brass socket and tip.
Socket: 1/4" male NPT bottom connection
Movement: Quality brass construction. Precision gears and finely finished bearing surfaces insure smooth motion and extended service life.
Dial: White metal with black figures and graduations.
Case: Black enamel finished, drawn steel with friction fit ring (style #07)
Accuracy: A.S.A. Grade B. Middle half of scale 2% of scale range, remainder 3%
CHEMICAL SERVICE PRESSURE GAUGES
Vantage Line - #316 Stainless Steel or Monel Tube Accuracy: 1/2 of 1%
Dial Sizes: 4 1/2", 6", 8 1/2"
Application: For heavy-duty service in media non-corrosive to #316 stainless steel or monel
Bourdon Tube: #316 stainless steel tube, socket and tip or monel tube, socket and tip
Connection: 1/4" or 1/2" male NPT. Bottom or Back
Movement: Stainless steel, rotary type
Blow-out Disc: Available when specified at extra charge
Application: For high pressure air, non-corrosive gas or hydraulic pressure
Bourdon Tube: Alloy steel with welded connections at socket and tip
Socket: Alloy steel, 1/4" or 1/2" male NPT. Bottom or back connection
Movement: Stainless steel rotary type
Dial: Black figures on non-reflecting white aluminum.
REFRIGERATION OR AMMONIA GAUGES
Astro Line - Phosphor Bronze or Alloy Steel Tube
Application: For refrigerants use gauges with bronze socket tube and tip (4 1/2" and 6" dial sizes only). For ammonia or other corrosive media use gauges with alloy steel socket, steel tube and tip
Bourdon Tube: Phosphor bronze or alloy steel
Socket: Bronze or alloy steel, 1/4" or 1/2" male NPT connection
For 2 1/2" & 3 1/2" case styles, click here.
Application: Designed to meet the requirements of heating, ventilating and air conditioning contractors and equipment manufacturers
Bourdon Tube: Phosphor bronze bourdon tube, brass socket and tip.
Movement:Quality brass construction. Precision gears and finely finished bearing surfaces insure smooth motion and extended service life
Dial: White metal with plack figures and graduations
Pointer: Plain balanced pointer and glass dial face
Case: Stainless Steel case, 4 1/2" with friction fit ring (style #05)
Accuracy: 1% in the working range. 1 1/2% at upper and lower scale extremes. Meets ANSI Grade A
Designed to meet the critical requirements of marine and similar applications where shock and vibration my be severe and dependable accuracy and reliability are vital. Solid front cover design with blow-out back provides a high degree of safety. Dial sizes: 3 1/2" and 4 1/2". Capacity ranges from 30" to 1000 PSI - meets MIL-G-18997-E.
Rugged shock and vibration resistant state-of-the-art direct coil connection design to meet MIL-G-18977-E. Inconel tube with other wetted parts precision frabricated from Monel for maximum reliability and accuracy. Solid front case with stainless steel mechanical parts. Pressure and compound ranges up to 5000 PSI. Dial Sizes: 2 1/2", 3 1/2" & 4 1/2"
are highly accurate, extra-rugged instruments for use whereever a high degree of precision and heavy usage are the primary considerations. Accuracy is 1/2 of 1% included scale range.
provide accuracy and long life for many applications where quality performance is primary consideration. Accuracy is 1% of included scale range.
are rugged, economical instruments for pressure and vacuum measurements of steam, air, water and other media non-corrosive to brass where excessive vibration or pulsation are not present. Accuracy is 2% of included scale range.
To meet the unique needs of the heating, ventilating and air conditioning industry and the O.E.M. supplier of equipment to this industry, where service conditions are moderate and the cost is a primary consideration.
Pressure Gauge Case Styles & Dimensions
Stainless Steel Case Gauges Dry or Liquid Filled
