Vat mini uhv gate valve actuator pn:01032-KE01-002/0387

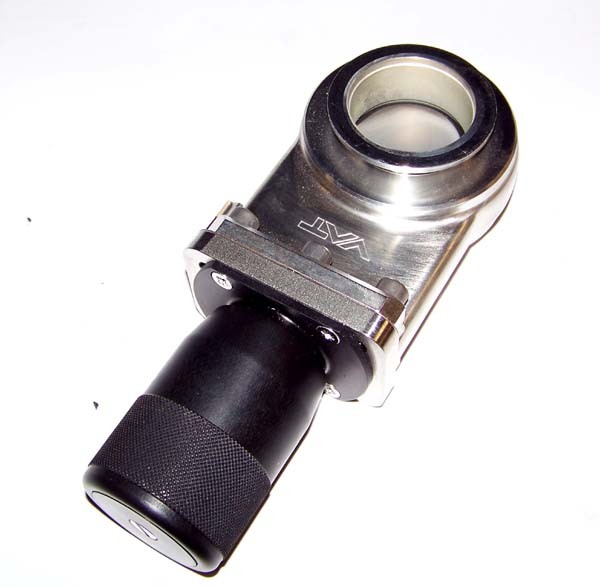

VAT Mini UHV Gate Valve Actuator PN:01032-KE01-002/0387
This is a Used VAT Mini UHV Gate Valve Actuator model: 01032-KE01-0002. This is a gate valve featuring a modular actuator and is used often in the inner workings of semi-conductor process systems. It is also lubricant free. This item was pulled from a working environment but has not been tested by us. Cosmetically, the item is in excellent condition with no major flaws. It is missing the adjustment allen key. The photos show a typical item. Only what is shown in the photos is included.
* Sealing materials : Bonnet: Metal / Gate: FKM (VITON )
* Molecular flow conductance : 160 ls-1
* Max. differential pressure closed position : 2 bar
* Max. pressure on seat side during opening : 0.03 bar
* Max. temperature : Valve body 200 C, Actuator 250 C
* Weight : 1.8 kg / 3.97 lbs
