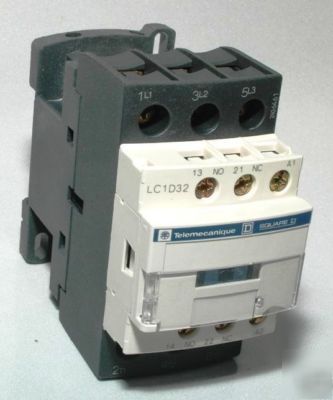

Telemecanique square d LC1D32G7 contactor 120V - 32A
The D-Line contactors and overload relays are the largest selling contactor line in the world. They offer high reliability with long mechanical life and the most complete accessories in the industry.
CONTACTOR, UP TO 30 HP AT 575/600 VAC 3-PH., 120 VAC CTRL., 1 NO/1 NC AUX.
* 3-Pole Contactor with Built-In Auxiliary Contacts
* IP20 Touch-Safe Terminals on the Contactors
Certifications UL Listed (E164862 / NLDX) - CSA Certified (LR43364 3211 04) - IEC Rated (60647-4) - CE Marked - RoHS Compliant
Horsepower Rating (3-Phase) 10HP @ 200/230Vac - 20HP @ 460Vac - 30HP @ 575Vac
Maximum Voltage Rating 600 Vac
Horsepower Rating (1-Phase) 2HP @ 115Vac - 5HP@230Vac
Coil Consumption Sealed 7.5 VA
Control Wire Size #10 to #18 AWG
Control Terminal Torque 15 lb-in (1.7 Nm)
Power Terminal Torque 20 lb-in (2.5 Nm)
