Over 100-push-to-connect fittings--less then-$.30 ea


Push-to-Connect Tube Fittings.
http:// /#catalog/115/180/=568jas
The nickel plating not only provides better corrosion resistance than nonplated brass, it also gives these fittings a bright, clean appearance. Use these fittings with water, air, and noncombustible and nonreactive gases. Push-to-connect fittings form a seal around the outside of the tubing; no tools are needed to release the tubing from the fitting. All are made of nickel-plated brass except the tube stem couplings and plugs, which are black PBT (polybutylene terephthalate). Fittings have a nickel-plated brass grasping ring, Buna-N (nitrile) 0-ring, and nickel-plated brass release ring. They can be sterilized with chemicals. Vacuum rating is 29.5' Hg @ 72 F.
Tube-to-Threaded Pipe Connectors-Have a white, nontoxic sealant on the threads. Pipe connections are NPTF (Dryseal), except the 10-32 size is a UNF straight thread. NPTF threads are compatible with NPT threads.
Tube stems adapt the end of a fitting; the stem end is a short piece of tubing. Easy-access
Maximum Pressure @ 72 F: 260 psi, except the tube stem couplings and plugs are rated 150 psi
Temperature Range: 0 to 175 F, except the tube stem couplings and plugs are 32 to 140 F
Tubing: Use polyethylene (with a hardness of Shore D 44), polyurethane (Shore A 95), and nylon (Rockwell R 78)

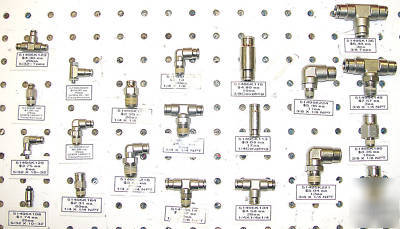

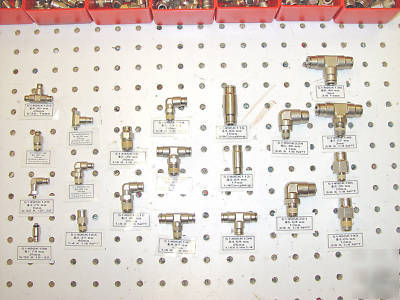

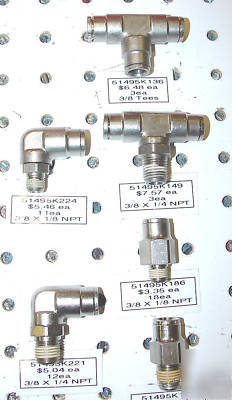

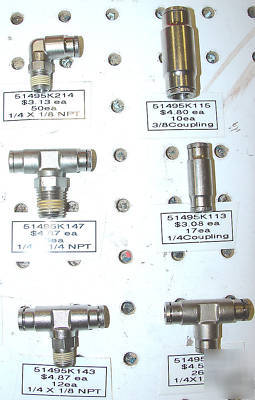

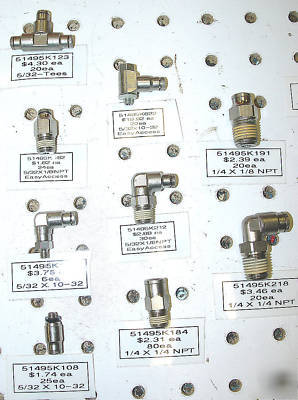

(1) 55149K108 6 ea @ 1.74 = 10.44
(2) 51495K182 6 ea @ 1.82 = 10.92
(3) 51495K184 20 ea @ 2.31 = 46.20
(4) 51495K191 5 ea @ 2.39 = 11.95
(5) 51495K186 5 ea @ 3.35 = 16.75
(6) 51495K193 3 ea @ 3.65 = 10.95
(7) 51495K129 1 ea @ 3.75 = 3.75
(8) 51495K212 7 ea @ 2.88 = 20.16
(9) 51495K214 12 ea @ 3.13 = 37.56
(10) 51495K218 5 ea @ 3.46 = 17.30
(11) 51495K113 4 ea @ 3.08 = 12.32
(12) 51495K115 2 ea @ 4.80 = 9.60
(13) 51495K224 2 ea @ 5.46 = 10.92
(14) 51495K221 3 ea @ 5.04 = 15.12
(15) 51495K132 5 ea @ 4.30 = 21.50
(16) 51495K134 6 ea @ 4.58 = 29.10
(17) 51495K136 1 ea @ 6.84 = 6.84
(18) 51495K143 3 ea @ 4.87 = 4.87
(19) 51495K147 1 ea @ 4.87 = 4.87
(20) 51495K149 1 ea @ 7.57 = 7.57
(21) 51495K622 5 ea @ 18.92 = 94.60
Average cost per part is $3.62
