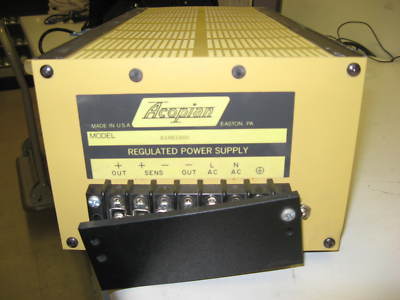

A18H1800 acopian - regulated power supply
Acopian - Regulated Power Supply
High Performance (model numbers begin with the letter A)
A broad selection of power supplies offering unusually high performance - many models have regulation of 0.005%. Electronic current limiting and provision for remote voltage sensing are standard features; overvoltage protection is available as a built-in option. Rugged extruded aluminum cases include threaded mounting holes on bottom, back, and side, permitting mounting in any position.
Provision for remote sensing and/or external output adjustment.
Short circuit proof with automatic recovery (electronic current limiting).
Input Voltage: 105-125 VAC, 50-400 Hz, single phase.
Remote Voltage Adjustment/Sensing: Provision for sensing the output voltage across the load, so that drops in the load line are compensated, is a standard feature. This feature also permits the use of an externally located potentiometer to adjust output voltage.
Polarity: Output is floating; either positive or negative terminal may be grounded or floated up to 300 volts above ground.
Temperature Coefficient: 0.015%/ C (Typical).
Ambient Operating Temperature: -20 to +71 C.
Response Time: Less than 20 microseconds.
M6 3.4 x 5.1 x 7.2 4 lb. 4 oz.
M9 3.4 x 5.1 x 9.8 7 lb. 4 oz.
M13 3.4 x 5.1 x 13.8 11 lb.
H8 5.1 x 7.4 x 9.5 15 lb. 8 oz.
H11 5.1 x 7.4 x 12.0 18 lb. 4 oz.
H16 5.1 x 7.4 x 16.8 26 lb.
