> Thomas compressor 2688CEG22

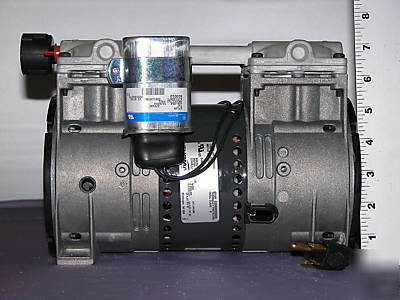

Thomas compressor 2688CEG22
617 / 668 / 688 / 2668 / 2688 SERIES
THE RECOGNIZED AIR SOURCE FOR OXYGEN CONCENTRATORS
Motor voltage/frequency variations available to suit most OEM applications.
NOTE: Permanent magnet DC motors are not available. 24v brushless DC motors are available.
Motor Types Available: Shaded pole, PSC, and BLDC
Motor Insulation Class: A and B (Consult product catalog for details.)
All units are thermally protected.
Free Air Flow: 617: Up to 1.00 CFM
Maximum Continuous Pressure: 100 PSIG - single-stage, 160 PSIG - two-stage
Vacuum Capability: 27 Hg single stage, 29 Hg two-stage (Depending upon stroke and motor selection these may change. Consult product catalog for details.)
One-piece connecting rod with TFE piston seal. Cylinder hard coated for wear resistance.
Stroke Selection Available: .220", .320", .400", .440
All single stage units have both pressure and vacuum capability without the need for internal modifications.
Wetted parts available Teflon or Epoxy coated for added corrosion resistance.
Design Life: 10,000-16,000 hours for AC motors
(Run within manufacturers recommended conditions. Actual life will vary with each application.)
Restart Capability: Ramped valve plates available for pressure or vacuum restarts.
Sound Level: 55-58 dB(A) (Approximate from a 3-foot profile.)
best suited for the following applications:
Oxygen Concentrators u Aspirators u Cable Pressurization
Copiers u Respirators u Radar Pressurization
Blood Analyzers u Medical Trauma Carts u Animal Feeders
Laboratory Analyzers u Laboratory Air Dryers u Sprayer Systems
Dental Equipment u Powder Spraying u Pump Priming
Ozone Generators u Duplicators u Purging Systems
Vacuum Frames u Printing Equipment u Vacuum Clamps
Waveguide Pressurization u Mail Sorters/Stuffers u Chair Lifts
Packaging Equipment u Optical Equipment
