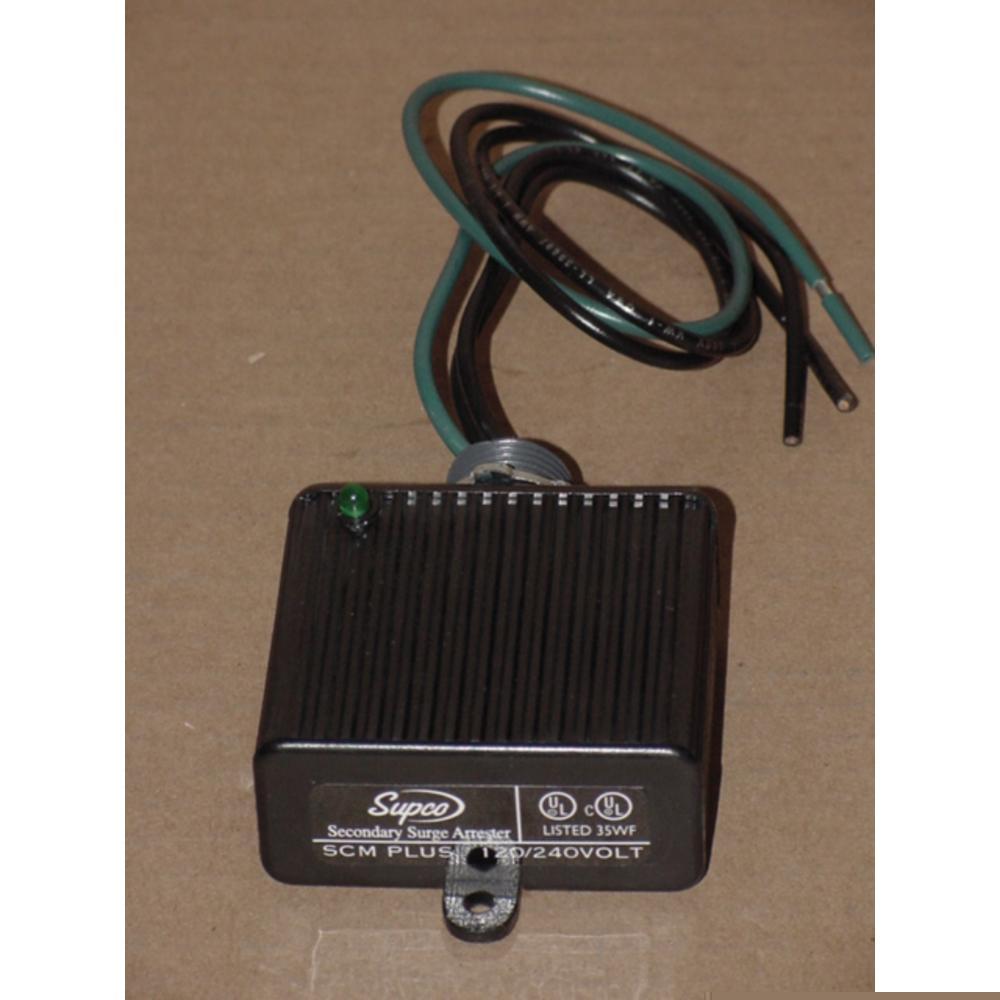

Supco scmplus 120/240 volt surge protection 159350
120/240 VOLT SECONDARY SURGE ARRESTER DEVICES INCLUDE TWO BLACK WIRES AND ONE GREEN WIRE,ASURGE PROTECTOR WORKS BY SHUNTING THE VOLTAGE SURGE TO GROUND,A GOOD GROUND IS IMPERATIVE,THE NATIONAL ELECTRIC CODE(NEC)MAXIMUM RESISTANCE AT GROUND IS 25 OHMS,SERVICE VOLTAGE:120/240 VOLT,SINGLE PHASE 100,000 AMPS,MAX.ENERGY DISSIPATION:840 JOULES,AC PROTECTION:L-L,L-G,RESPONSE TIM OPERATING FREQUENCY:<5NS INSTALLED 0-400 HZ,DIAGNOSTICS:INDICATOR LIGHT SURGE SUPPRESSION PRESENT,CLASS:SECONDARY SURGE ARRESTOR,CAT C,INSTALLATION POINT:ELECTRICAL PANEL,ELECTRICAL DISCONNECTHARDWIRE PARALLEL CONNECTION,HOUSING:HIGH IMPACT PLASTIC,WEIGHT:0.6 POUNDS,DIMS:3"H X 2-1/4"W X 3/4"D.
