4' Arm 9" Col Dia Giddings &Lewis CHIPMASTER RADIAL DRI
4' Arm Lth 9" Col Dia Giddings &Lewis CHIPMASTER RADIAL DRILL, Power elevation, Tapping, Box Table,

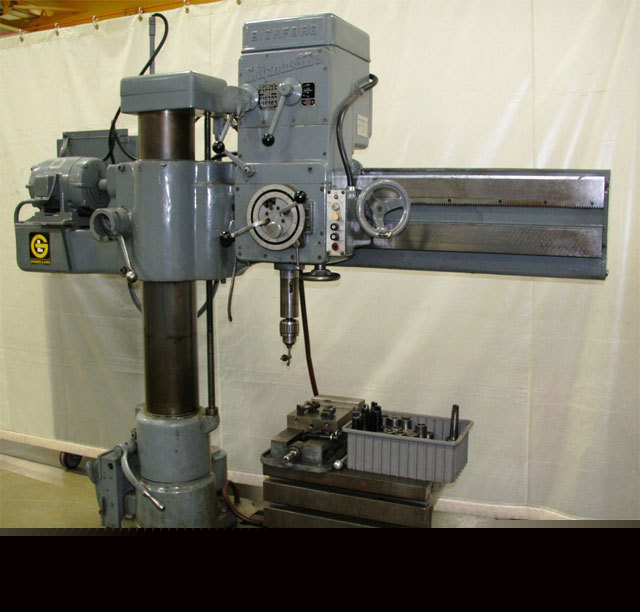

4' X 9" GIDDINGS & LEWIS RADIAL DRILL
MODEL: CHIPMASTER S/N: 951-00175-64, NEW: 1964
MAXIMUM DISTANCE SPINDLE TO COLUMN .. 55"
COLUMN DIAMETER ..................... 9"
FACE OF COLUMN TO CENTER OF SPINDLE . 10-1/2" MIN
VERTICAL TRAVEL OF ARM ON COLUMN .... 28-1/4"
DISTANCE SPINDLE TO BASE MAX/MIN .... 53"/15"
WORKING SURFACE OF BASE ............. 30" X 53"
VERTICAL TRAVEL OF SPINDLE IN HEAD .. 10"
SPINDLE FEEDS (4) ................... 4, 8, 14 & 20 IPR
SPINDLE SPEEDS-(9) .................. 90 TO 1,800 RPM
DRILLING CAPACITY ................... 1-1/2"
TAPPING CAPACITY .................... 3/4"
BORING CAPACITY ..................... 3-5/8"
APPROXIMATE WEIGHT .................. 5,000 LBS
OVERALL DIMENSIONS HEAD DOWN ....... 7' TALL
