1.8" 3 2/3 12V digital red led 30V dc volt panel meter

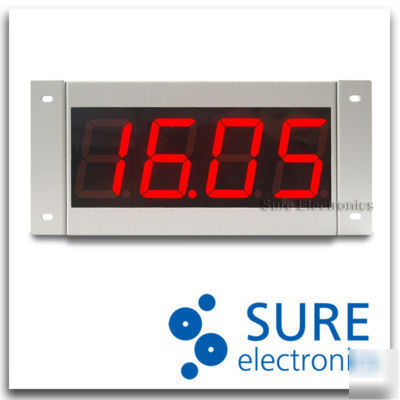

1.8" 3 2/3 Digital Red LED 30V Panel Meter
This item is the first king-sized vandal-proof volt panel meter made by Sure Electronics. It employs 4 pcs 1.8" red 7-segment LEDs as its display due to the wide viewing angle and clear contrast features. Its stiffened iron case extends its service range to much harsh environment, such as extreme heat, vibration or humidity. It can work without additional DC power supply, therefore its wiring is as easy as abc, just like another self-powered volt panel meter-ME-SP039.
In the mean time, this panel meter offers two additional L-shaped iron plates so that you can integrate this panel meter into your application seamlessly. You can also use two holes on the rear cover of the meter to have a wall mounting.
* Size: 197.00 (L) X 88.50 (W) X 43.16 (H) 0.2mm
* 1.8" king-sized red LED display
* Self-powered digital volt panel meter
* Successive approximation A/D conversion module displays readings fast and accurate
* Flexible mounting options available as either embedded installation or wall mounting
* Over 90% components are SMT based, which are reliable and environment-friendly
* High-efficient DC-DC converter for powering, low operation temp rise, which is far below the temp rise of other competitive products
Input Impedance ( @ VCC = 12V )
Accuracy ( @3 minutes warm up )
1.8" 3 2/3 Digital Red LED 30V Panel Meter 1
Screws recommended for mounting includes M3 X8mm or M3 X 12mm slotted cross pan head screw or countersunk screw with plain washer.
