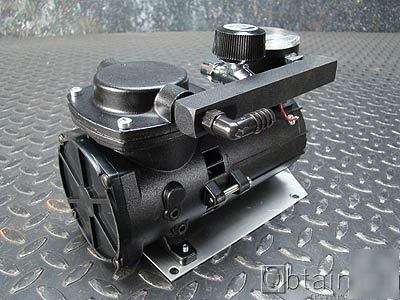

Thomas industrial diaphragm vacuum pump 12 volt unused
Thomas Industrial Diaphragm Vacuum Pump 12 Volt UNUSED
New/Unused, tested and in excellent condition.
You will receive one like the one shown in the photos as we have several.
Model # 107CDC20-898, with vacuum adjustment valve & gauge
1.4 cfm, Stroke (SI / USCS) 5.1 mm / 0.2 IN
Pump is tested with a reading of 21 in. Hg. on a test gauge - which matched the installed gauge.
Pump does not have a cutoff switch.
Additional pump specifications:
* Operating Mode Pressure or Vacuum
* Product Family / Type Diaphragm
* Motor Type Permanent magnet
* Motor Protection Class A
* Pressure Flow Rate @ 0 pressure (SI / USCS) 39.66 l/min / 1.4 CFM
* Max. Pressure Continuous (SI / USCS) 2,4 bar / 35 PSI
* Max. Interim Pressure (SI / USCS) 2,4 bar / 35 PSI
* Max. Pressure Restart (SI / USCS) 1 bar / 15 PSI
* Vacuum Flow Rate @ 0 vacuum (SI / USCS) 39.66 l/min / 1.4 CFM
* Max. Vacuum Continuous (SI / USCS) -775.4 mbar / 22.9 IN.HG
* Max. Interim Vacuum (SI / USCS) -775.4 mbar / 22.9 IN.HG
* Max. Vacuum Restart (SI / USCS) -775.4 mbar / 22.9 IN.HG
* Ambient Temperature, min. (SI / USCS) 10 C / 50 F
* Ambient Temperature, max. (SI / USCS) 40 C / 104 F
* Motor Rating (SI / USCS) 74.6 W / 0.1 HP
* Weight (SI / USCS) 2 kg / 4.5 lbs
This unit measures 4.25" x 6.5" on the bottom plate, 5" tall 7.5" long and the head is 4" wide.
