Panasonic wv-BM1910 19 b/w high res cctv monitor
CONDITION: -OPEN BOX-APPEARS NEW-A MINOR SCRATCH OR 2-NO MANUAL

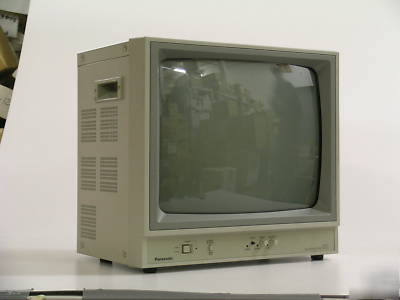

* The Panasonic WVBM1910 is a desktop closed circuit video monitor especially designed for surveillance and studio applications. This monitor features an 18 5 /8 " (473mm) actual diagonal viewing size screen and produces sharp black-and-white pictures with a horizontal resolution of 1000 lines at center.
* Horizontal resolution of 1000 lines at center
* 18 5/8 inches (473mm) actual diagonal viewing size
* Under or normal scan size (switchable)
* DC restoration: on/off switchable

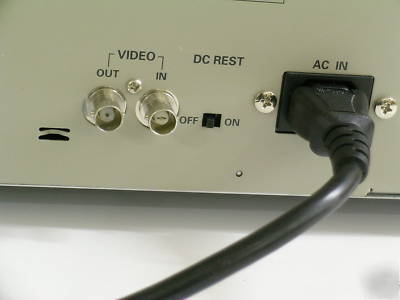

* Loopthrough BNC connectors for video and sync input and output
* Video Input : 1.0V p-p EIA composite/75 ohms x 1
* Video Output : Looping through video in connector x 1
* Horizontal Resolution : 1000 lines
* Sweep Linearity : Less than 5% at overscan
* Sweep Geometry : Less than 2% at overscan
* Scanning Size : Normal or underscan, selectable
* Actual Visual Size : 18-5/8 inches (473mm) diagonal
* CRT Size : 19-7/8 inches (505mm) diagonal
* DC Restoration : Switchable
* Ambient Operating Temperature : 14 ~ 122 F (-10 ~ +50 C)
* Ambient Operating Humidity : Less than 90%
* Power Source : 120VAC, 60Hz
* Power Consumption : Approximately 47 Watts
