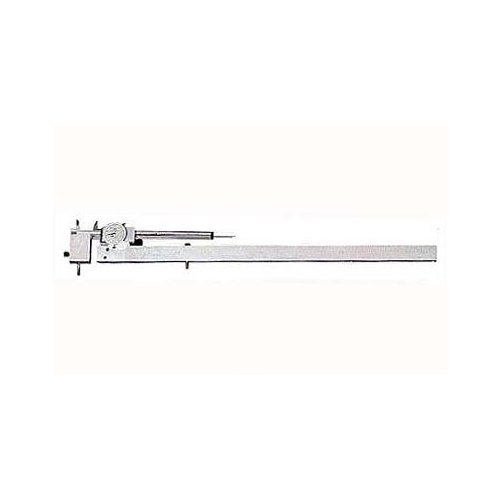

New 36" caliper extender * *
Converts any 6" dial or digital caliper into a measuring device capable of measuring up to 36" with accuracy. Caliper Extender readily attaches to your caliper (2 set screws & 2 clamp screws). In no way detrimental to your caliper, which may be quickly removed or left assembled as a permanent measuring device. To measure inside dimensions Shift pin in block to inside hole (no re-calibration required). A six-inch calibration rod is supplied so that exact calibration is assured. 1/2" pins provided. Made of black anodized aluminum, except for 91" model which is clear anodized. In addition to the tolerance of the caliper, for cumulative accuracy add the following tolerances: 26" /- .003" 36" /- .003" 51" /- .004" 71" /- .005" 91" /- .006"
