17.5 cu. ft. double ribbon blender - c/s#6501

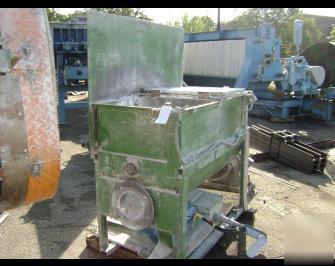

17.5 CU. FT. DOUBLE RIBBON BLENDER WITH SCREW CONVEYOR - C/S
1 - used approx. 17.5 cu. ft. working capacity Ribbon Blender. Carbon steel construction. Trough is approx. 27 1/4 in. wide x 5 ft. long x 27 1/4 in. deep (to top of ribbon). Single shaft with ribbons and paddles. 7.5 HP 3/60/230/460V 20.1/10.5 amp 1750 RPM gear motor. Chain drive. Push button start/stop. Approx. OAD: 8 ft. long x 3 ft. 6 in. wide x 76 in. high. Hinged top grate cover. Mounted on base. Unit side end discharges into approx. 5 in. dia. x 10 ft. long angled screw conveyor driven by separate 1 HP motor. Unit was last used in the production of fishing lures. F.O.B. - CLEVELAND OH
