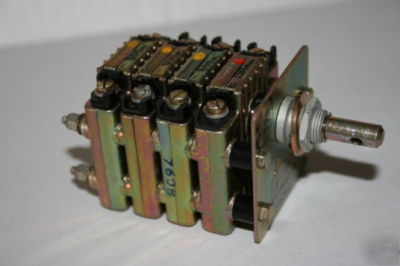

150 + 300 ohm quad ganged wire wound dimmer pot FD2J38
150 / 300 OHM GANGED POWER POTENTIOMETER
Manufactured by or for Thorn Electrics, as their part number 01-0204-6, this is an interesting premium quality high power wire wound potentiometer / rheostat.
Has 1 x 150 Ohm and 3 x 300 Ohm seperate resistances
Obviously the different elements could be paralelled and seriesed :-)
We don't have any specifications but we would guess each resistance is good for 25 Watts. The control is over 180 degrees, so half a turn.
Overall body dimensions are approxiamatly 45mm square by 60mm in length with a standard 1/4" (6.3mm) shaft, approx 15mm in length plus the 10mm threaded mounting bush. Connections are by screw terminals.
