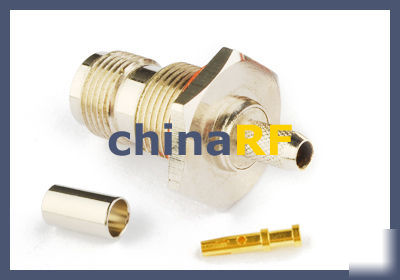

Tnc jack crimp bulkhead connector for RG58 LMR195
TNC Jack crimp bulkhead connector for RG58 LMR195
Manufacturer's Part #: RF-0639
Temp.range,-65 +165 C (PE Cable -40 +85 C)
Vibration,MIL-STD-202, Method 213
Insulation resistance, 5000 M
Durability(mating), 500 cycles
contact pin ,brass, gold or silver plated
socket,beryllium,gold or silver plated
elastic contact,beryllium,gold plated
crimp ferrule ,copper alloy,nickel plated
