Sinometer 2500V 40GOHM insulation tester & multimeter

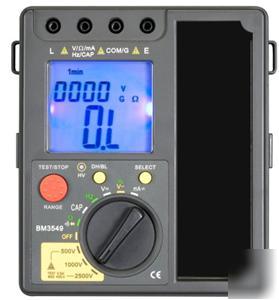

Sinometer 2,500 V 40 Gohm Insulation Tester & DMM, BM3549
The Sinometer BM3549 combines a giga-ohm insulation tester and a digital multimeter flawlessly into one convenient device. As a multimeter, it can be used to measure AC/DC voltage & amperage, resistance, capacitance, frequency, diode test as well as continuity test. As a insulation tester, it can generate up to 2500 volts and test insulation anywhere from 500 K to 40 G . For you convenience and safety, when conducting insulation tester, the display not only shows the resistance, but also the voltage and time duration of the test. Another unique feature of this meter is its self-calibration function, when you enter the calibration mode, you can calibrate all the ranges easily and conveniently by pressing a few buttons.
Open circuit voltage: 0.9 - 1.1 times of nominal test voltage
Short circuit current: > 1.5 mA
DC Voltage: 400mV/4V/40/400V 0.5 % 1000V 0.8%
AC Voltage: 4V/40V/400V 0.8%, 700V 1.0 %
AC Current: 40mA/400mA 1.0%
DC Current: 40mA/400mA 0.8%
Resistance: 400 /4K /40K /400K 0.8 4M 1.0% 40M 2.0%
Capacitance: 40nF/400nF/4 F/40 F 3.0%
Frequency: 40Hz/400Hz/4KHz/40KHz/400KHz/4MHz 0.5 %
Back-lit LCD screen with dual display
Portable and ergonomic design
BM3549 2-in-1 2500V insulation tester & DMM
