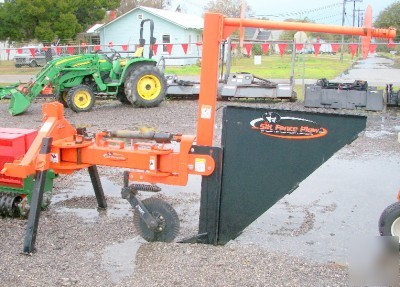

Rotary offset silt fence plow sfp-36
ROTARY OFFSET SILT FENCE PLOW SFP-36
Cat. I and II 3 point hookup pins are standard equipment on the dedicated
The rear pivot can swing 90 degrees either side of center. The rear pivot design provides the tightest turning radius available. Massive 2" x 8" pivot pins ensure years of dependable service.
Spring Loaded Coulter with hardened steel blade cuts through tree roots and vegetation.
Fabric Tension Spring and 16" diameter Fabric Plates.
Simple easy to adjust fabric tension spring allows for quick adjustment. 16" Diameter fabric plates prevent the fabric from telescoping over the plates during installation.
Forklift / Hoist slots for easy moving
6" x 4" x 3/8" Tube Steel Main Frame for the strongest built machine in the industry.
Replaceable hardened plow point is designed to disrupt the soil upward for easier pulling and proper silt fence installation.
1" Thick Moleboard Knife is standard equipment. Stainless steel parts in key wear areas and specially designed fabric chute installs fabric in a tight consistent snag free manner.
Simple Rotary Offset Design allows you to quickly offset up to 31" either side of center. By aligning two pins the machines offset position can be changed while it is in the ground.
The self contained swing dampening cylinder with a simple swing lock holds the machine centered when in transport.
Dual knife point settings optimize variances in tractor sizes. Rear shear bolt protection with hardened bushing.
HTL-1055 Hydraulic Top Link Cylinder:
The hydraulic top link cylinder (required for 3 pt hitch mountings) goes in place of the rigid top link on the tractors 3 point hitch. This allows the operator to adjust the pitch of the knife on the knife on the machine so it doesn't nose dive or come out of the ground. Comes with hoses and pioneer ends.
The wire unroller mounts on either side of the machine. It allows a roll of wire to be unrolled as the fabric is being sliced into the ground. It will not install the wire into the ground
FC-1136 36" Fabric Curtain The fabric curtain is a plastic divider that separates the fabric so it does not rub against itself as it goes through the fabric chute. It is only needed when using non-woven fabrics to prevent the fabric from grabbing itself and pulling down. With the slick woven fabric, the divider is not needed.
