> New lincoln K2701-1 power mig 255XT ( )
New lincoln K2701-1 power mig 255XT ( )
http://norrisequip.com/images/Lincoln_K2701-1_POWER_MIG_255XT_2.jpg

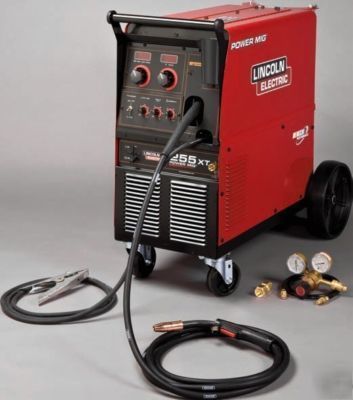

Lincoln K2701-1 POWER MIG 255XT
http://norrisequip.com/images/Lincoln_MAGNUM_250L_GUN.jpg
the POWER MIG 215XT is equipped to feed .035"-.045"
(0.9-1.2 mm) solid steel wire.
Extra reach 15 foot gun cable length.
Lightweight and flexible for easy maneuverability.
Fiberglass handle with non-slip grooves to maximize comfort and control.
Heavy duty gun trigger switch for positive electrical contact and long life.
Magnum replacement parts are fully compatible with other leading brands. Industry reference numbers are provided for ease of interchangeability.
http://norrisequip.com/images/Lincoln_DiamondCore-1.jpghttp://norrisequip.com/images/Lincoln_DiamondCore-2.jpg
Diamond Core Technology is a patented innovative choke design that filters the welding arc. It provides dynamic optimized arc filtering across the entire welding range of amperages. Other arc stabilization methods are fixed or only working at certain amperages resulting in harsh arc characteristic changes over the welding range.
Great starts and low spatter.
Outstanding performance on a wide variety of materials steel, stainless and aluminum.
A wide sweet spot for optimal arc performance.
Steel, stainless and aluminum.
Energize Your Shop! The POWER MIG 255XT features a 115 volt auxiliary power receptacle which allows you to power grinders, lights, cordless tool chargers or any other power tools.(1)
http://norrisequip.com/images/Lincoln_K2701-1_POWER_MIG_255XT_feature_0.jpg
Compare These Innovations Make the Professional s ChoiceSM!
http://norrisequip.com/images/Lincoln_K2701-1_POWER_MIG_255XT_feature_1.jpg
Adds 4-step trigger interlock, spot mode, adjustable run-in speed for smoother arc starting, and adjustable burnback time to minimize wire sticking in puddle.
http://norrisequip.com/images/Lincoln_K2701-1_POWER_MIG_255XT_feature_2.jpg
Easy Load Gas Cylinder Platform
http://norrisequip.com/images/Lincoln_K2701-1_POWER_MIG_255XT_feature_3.jpg
1. Lockable storage compartment with tool tray stows your welding consumables and valuable personal tools.
2. Built-in gun holder conveniently stores welding gun.
3. Handy MIG Gun Expendables Chart.
http://norrisequip.com/images/Lincoln_K2701-1_POWER_MIG_255XT_feature_4.jpg
http://norrisequip.com/images/Lincoln_K2701-1_POWER_MIG_255XT_feature_5.jpg
Extra Length 15 ft. (4.5 m) Gun
http://norrisequip.com/images/Lincoln_K2701-1_POWER_MIG_255XT_feature_6.jpg
Additional Gas Solenoid Controls Gas Flow to a Spool Gun
http://norrisequip.com/images/Lincoln_Maxtrac_wire_drive_system-2.jpg
* Split guides support the wire through the entire drive system to minimize feeding problems.
* Reliable brass-to-brass gun receiver bushings provide connectivity to Magnum or competitive guns. Easier interchangeability, better mechanical support and electrical current transfer.
* Angled gun cable connection for improved feedability and reduced gun liner wear.
* Easy turn numeric tension indicator with optimized ranges for different wire types.
* Wide idler arm hinge provides improved drive roll clamping pressure.
* Input bushing protects the wire from damage.
* Two gear driven rolls. No tools needed to swap rolls on or off.
* Separate drive gear reduces pressure on motor shaft for long life.
* Removable outer wire guide for easy access.
http://norrisequip.com/images/Lincoln_Maxtrac_wire_drive_system-1.jpg
http://norrisequip.com/images/Lincoln_Maxtrac_wire_drive_system-3.jpg
A. Digital meter displays preset wire feed speed.
B. Presettable digital wire speed control with fine resolution at low settings.
C. Digital meter displays preset voltage setting and actual voltage while welding.
E. Presettable digital voltage control with fine resolution at low settings.
F. Angled gun connection for improved feedability.
G. Second gas solenoid for spool gun use.
http://norrisequip.com/images/Lincoln_K2701-1_POWER_MIG_255XT_feature_7_FrontPanel.jpg
Fan-As-Needed (F.A.N. ) provides cooling of transformer and other components when welding, reducing power consumption, noise and extending welder life.
Thermostatic protection from current overload and excessive temperatures.
Printed circuit boards are environmentally-shielded using Lincoln's engineered potting and protective frame trays.
Low input current draw for energy-efficient low cost operation.
Power source line voltage regulation holds voltage setting constant to maintain weld quality even when the input voltage fluctuates 10%.
Approved by Canadian Standards Association (CSA).
The POWER MIG 255XT has built-in electronics to drive either a Magnum SG Spool Gun or a Magnum 250LX Spool Gun. In addition, a second gas solenoid is provided to supply and control gas flow to the spool gun.
1. Simply plug the spool gun control cable into the built-in 7-pin
connector (Magnum SG gun requires K2445-1, 6- to 7-pin
control cable adapter plug.)
2. Connect the spool gun s power cable to the output terminal
in the wire drive compartment.
3. Hook the spool gun gas line to the solenoid gas fitting and
1. http://norrisequip.com/images/Lincoln_K2701-1_POWER_MIG_255XT_feature_8_SpoolGunConnect-1.jpg
2. http://norrisequip.com/images/Lincoln_K2701-1_POWER_MIG_255XT_feature_8_SpoolGunConnect-2.jpg
3. http://norrisequip.com/images/Lincoln_K2701-1_POWER_MIG_255XT_feature_8_SpoolGunConnect-3.jpg
It s easy to start welding with a spool gun. Set wire feed speed at the gun see the pre-set wire feed speed displayed on the POWER MIG 255XT meter.
Faster set-up No more guessing on wire feed speed!
http://norrisequip.com/images/Lincoln_K2701-1_POWER_MIG_255XT_feature_8_SpoolGunOperation-1.jpg
http://norrisequip.com/images/Lincoln_K2701-1_POWER_MIG_255XT_feature_8_SpoolGunOperation-2.jpg
POWER MIG 255XT SPOOL GUN SOLUTIONS
The economic Magnum SG or premium Magnum 250LX spool guns are recommended for easy changeovers to a second electrode material such as stainless steel or aluminum. Avoid the time-consuming liner, contact tip, drive roll and machine polarity changes necessary when preparing your machine s wire drive for use with those materials. Spool guns are especially recommended for feeding soft aluminum wire. Lincoln s spool guns accommodate 4" (100 mm) diameter 1 lb. (.45 kg) spools and feature convenient wire feed speed control at the gun handle
http://norrisequip.com/images/Lincoln_K487-25_Magnum_SG_Spool_Gun_25ft.jpg
http://norrisequip.com/images/Lincoln_K2490-1_Magnum_250LX_Spool_Gun.jpg
Feeds .025 - 3/64 in. diameter wire
Single Turn remote Wire feed speed
Adjustable drive roll tension
Multi-Turn remote Wire feed speed
Deluxe wire spool break requires
Contact tip storage built in spool
Easy open wire drive rolls for easy
