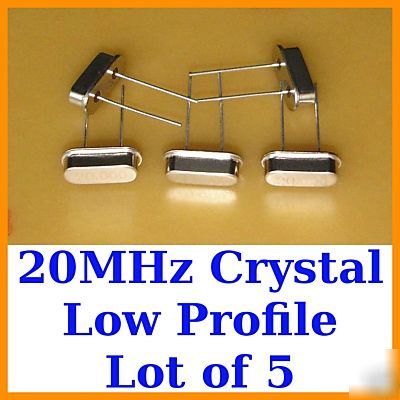

New 5X 20MHZ quartz crystal l/p +/-20PPM HC49S 20 mhz
20.000MHz Low Profile Quartz Crystal +/-20ppm
Quantity - 1 lot of 5 Crystals
Suitable for use in microprocessor and other industrial applications
Packaged in Industry Standard HC-49/S Case
Overall height when PCB mounted of just 4mm
* Mode of Oscillation: Fundamental
* Nominal Frequency: 20.0000MHz
* Frequency Tolerance: 20ppm
* Temperature Characteristics 50ppm
* Operating Temperature Range: -20/+70oC
* Resonance Resistance 40ohm max
* Shunt Capacitance: 7pF max
* Aging Rate per Year: 3-5ppm
* Insulation Resistance: 500Mohm
On offer are 16MHz Quartz Crystals.
