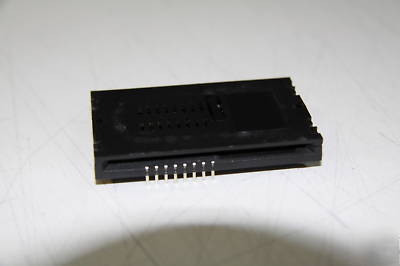

Amphenol card slot iso 7816 16 pin work with 8 pin
These Card Slots will work with most 8 Pin applications you could even just cut the extra pins out.
Great for replacing card slots in receivers or programmers.
These popular acceptors are low cost and provide direct sliding contact between the acceptor and the chip card. These acceptors have NC closed card present switches which open when the card is fully inserted. Options include: screw/rivet mounting, snap in board locks, SMT, dual head, wiping switches, EMV compatible switches, extended card guides, low force contacts, flex film I/O, double decked versions and 3mm high standoffs.
Card Insertion Force (C702 10M008 2384)
Data Contacts Connect Before Switch Opens - Switch Opens When Card Is In Reading Position
Solder Pin for PCB's of 1.6 - 2.4 mm Thickness (1.4 - 1.68 mm for Snap-in-Latch Models or SMT)
Self-Tapping Screw or Rivet, Snap-In Latches
Thermoplastic (Withstands Use of General Cleaning Material)
Test Class (According to IEC 68-1)
(According to IEC 512-2 Test 2a)
(According to IEC 512-2 Test 3a)
Between Data Contacts: 1,4mm; Between Switch: 0,1mm
Creepage Distance (According to IEC 664)
Contact Capacity (IE IEC 512-9 Test 22a)
