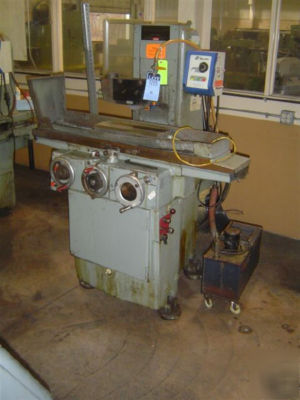

6"X18" brown & sharpe hyd horiz-spdl surf grinder 25820
6" x 18" BROWN & SHARPE "MICROMASTER"
Factory Rebuilt June 1990, Serial No. 523-6181-582
6" x 18" Electro-Magnetic Chuck w/Walker Controls
Fine Feed Attachment for Vertical Hand Wheel
Table Working Surface, W x L............ 6" x 18"
Grinding Width Capacity, Maximum........ 6"
Grinding Length Capacity, Maximum....... 18"
Height Under 8" Grinding Wheel.......... 15"
Longitudinal Table Travel............... 22"
Cross Table Travel...................... 7"
Vertical Grinding Head Travel........... 15-3/4"
Grinding Wheel, Diameter................ 7"
Grinding Wheel, Hole Diameter........... 1-1/4"
Grinding Spindle Speeds, Range.......... 3450 RPM
Longitudinal Table Feeds, Range......... 5 to 100 FPM
Cross Table In-Feeds, Range............. .01 to .25 IPR
Power Rapid Cross Traverse.............. 12 FPM
Overall Dimensions, L x D............... 5'6" x 4'11"
Overall Height.......................... 6'3"
Weight, Approximately................... 2625 LBS
PRICE: F.O.B. OUR WAREHOUSE............. $3,950.00
