New scinta scintilla lathe spindle nos old stock W16

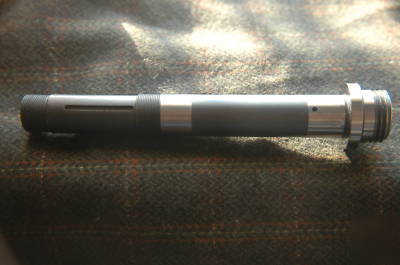

Brand new spindle for a Scinta scintilla lathe made in Switzerland.

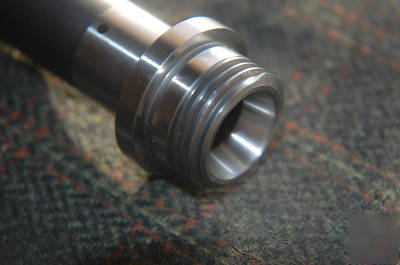

Measures 204mm long or 8". Nose diameter is 30.4mm pitch thread is 2.5mm , threaded part is 29.9mm.
Spindle end has a threaded part of 22mm with a pitch thread of 1mm.

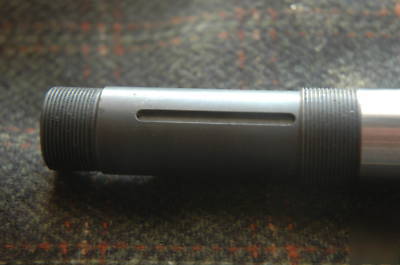

Spindle body threaded part is 24.8mm in diameter and a 1mm pitch thread.
Used with W16 - 45 & 5 degrees 1.25mm pitch thread.
