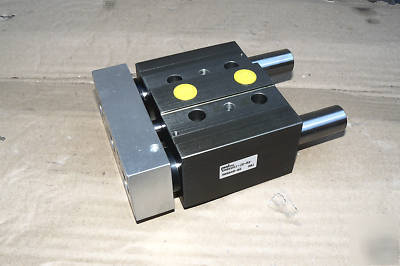

New phd inc SA062X1-J2-R2 compact pneumatic slide
Series SxL/SxH Slides feature a compact cantilever design and are available in nine sizes to accommodate a wide range of applications. Two bearing types are available in most sizes with travel lengths up to 8 inches. Units are standard with high capacity internal and external shock pads for noise and impact reduction.
NEW! 40, 50, and 63mm sizes are now available. Units offer high capacity TC composite bearings with oversize shafts providing exceptional load and KE stopping capacity.
Advantages: Compact, high load capacity, nine sizes, robust, long life
* Choice of self-lubrication polymer bearings (SxL)(available on sizes 10-32mm only) or TC fluoropolymer composite bearings (SxH) provides flexibility to select the ideal performance to cost desired.
* Series SxL and SxH Slides are available in nine sizes with travel lengths up to 8 inches (SxH only) making them suitable for a wide range of applications .
* The Series SxL Slide design employs self-lubricating polymer bearings with hard chrome plated shafts for moderate load capacity, low friction, and low price. (Available on sizes 10-32mm only)
* Series SxH Slides exhibit precision machined high capacity TC fluoropolymer composite bearings with precision ground hardened shafts for superior slide performance at a moderate price.
* Available in both imperial and metric versions for applications in worldwide markets.
* All units incorporate twin switch slots for flush installation of PHD's Series 6790 Switches, thus eliminating the need for expensive collars, brackets, and target kits.
* High capacity internal shock pads are standard on all sizes to reduce noise and end-of-travel impact.
* Low friction U-cup piston seals provide long cylinder life with low breakaway pressure.
* All units have tapped and/or counterbored mounting holes in the slide housing and tool plate with optional dowel holes for easy mounting and attachment of tooling.
* Optional travel adjustment on extend (-AE option) equips the unit with stop collars and external shock pads for high speed, high load applications and easy adjustment of the extended tool plate position.
* Complete corrosion resistant options provide protection in corrosive environments.
