Trane air handler fan heat exchanger 2HP size 120

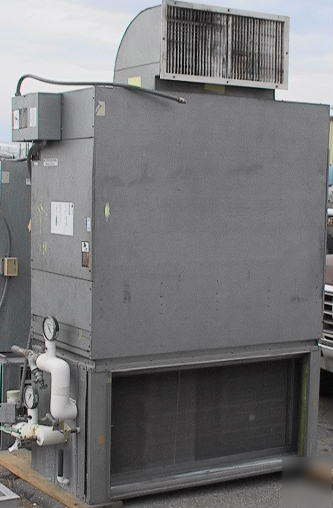

TRANE Air Handler Fan Heat Exchanger 2hp size 120.
Pass hot or cold water through the heat exchanger and the fan will blow air through to heat or cool a room.
The heat exchanger coil is about 50 inches by 24 inches.
A temperature probe sticks into the air stream in front of the coil as shown above.
There are a couple of nice looking pressure gauges but I don't think there is really 32 PSI on the first one.
The thermostat control shown above looks like it has had better days.
Overall basic dimensions of this unit are about 58 inches wide by 28 inches deep and 7 feet tall.
The air distribution duct on top of the unit adds about 18 inches to the height and is about 30 inches wide.
The frame in the foreground is a base riser for this unit. It kept the bottom of the unit from sitting on the floor.
Raw weight of this unit is about 770 pounds.
Might be just what you need for your moderate air handler application.
Condition looks good used other than dings noted above. Was operating in factory before we took it out.
