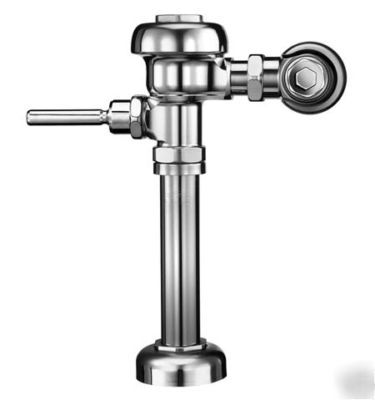

Sloan 111 regal xl flush valve flushometer 1.6 gpf
* Exposed Water Closet Flushometer
* for floor mounted or wall hung top spud bowls.
* Sweat Solder Adapter with Cover Tube
* Cast Set Screw Wall Flange
Model 111 Low Consumption (1.6 gpf/6.0 Lpf)
* Chrome Plated Closet Flushometer
* ADA Compliant Metal Oscillating Non-Hold-Open Handle
* 1 I.P.S. Screwdriver Bak-Chek Angle Stop
* Vacuum Breaker Flush Connection
* Spud Coupling, Wall and Spud Flanges for 1 Top Spud
* High Copper, Low Zinc Brass Castings for Dezincification Resistance
* Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water Conservation
* Low Consumption flush accuracy controlled by Para-Flo Technology
* Handle Packing, Stop Seat and Vacuum Breaker to be Molded from PERMEX Rubber Compound for Chloramine Resistance
* Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass.
* Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19.6, and Military Specification V-29193.
Click here for Specification Sheet
Click Here for Installation Instructions
Click Here for Sloan Regal Maintenance Guide
