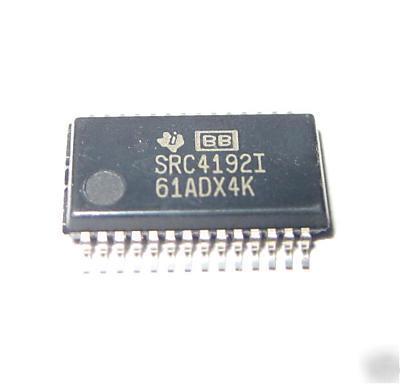

SRC4192 192 khz stereo asr sample rate converter
The SRC4192 and SRC4193 are asynchronous sample rate converters designed for professional and broadcast audio applications. The SRC4192 and SRC4193 combine a wide input-to-output sampling ratio with outstanding dynamic range and ultra low distortion. Input and output serial ports support standard audio formats, as well as a Time Division Multiplexed (TDM) mode. Flexible audio interfaces allow the SRC4192 and SRC4193 to connect to a wide range of audio data converters, digital audio receivers and transmitters, and digital signal processors.
The SRC4192 is a standalone pin programmed device, with control pins for mode, data format, mute, bypass, and low group delay functions. The SRC4193 is a software-controlled device featuring a serial peripheral interface (SPI) port, which is utilized to program all functions via internal control registers.
The SRC4192 and SRC4193 may be operated from a single +3.3V power supply. A separate digital I/O supply (VIO) operates over the +1.65V to +3.6V supply range, allowing greater flexibility when interfacing to current and future generation signal processors and logic devices. Both the SRC4192 and SRC4193 are available in a 28-lead SSOP package.
* AUTOMATIC SENSING OF THE INPUT-TOOUTPUT SAMPLING RATIO
* WIDE INPUT-TO-OUTPUT SAMPLING RANGE: 16:1 to 1:16
* SUPPORTS INPUT & OUTPUT SAMPLING RATES UP TO 212kHz
* DYNAMIC RANGE: 144dB (-60dbFS input, BW = 20Hz to fS/2, A-Weighted)
* THD+N: -140dB (0dbFS input, BW = 20Hz to fS/2)
* ATTENUATES SAMPLING AND REFERENCE CLOCK JITTER
* HIGH PERFORMANCE, LINEAR PHASE DIGITAL FILTERING WITH BETTER THAN 140dB OF STOP BAND ATTENUATION
* FLEXIBLE AUDIO SERIAL PORTS: Master or Slave Mode Operation
Supports I2S, Left Justified, Right Justified, and TDM Data Formats
Supports 16, 18, 20, or 24-Bit Audio Data TDM Mode allows daisy chaining of up to eight devices
* SUPPORTS 24-, 20-, 18-, or 16-BIT INPUT AND OUTPUT DATA
All output data is dithered from the internal 28-Bit data path
* LOW GROUP DELAY OPTION FOR INTERPOLATION FILTER
* DIRECT DOWNSAMPLING OPTION FOR DECIMATION FILTER (SRC4193 ONLY)
* SPI PORT PROVIDES ACCESS TO INTERNAL CONTROL REGISTERS (SRC4193 ONLY)
* PROGRAMMABLE DIGITAL OUTPUT ATTENUATION (SRC4193 ONLY)
256 steps: 0dB to 127.5dB, 0.5dB/step
* OPERATES FROM A SINGLE +3.3 VOLT POWER SUPPLY
* SMALL 28-LEAD SSOP PACKAGE
* PIN COMPATIBLE WITH THE AD1896
* DIGITAL AUDIO WORKSTATIONS
* AUDIO DISTRIBUTION SYSTEMS
* BROADCAST STUDIO EQUIPMENT
* GENERAL DIGITAL AUDIO PROCESSING
