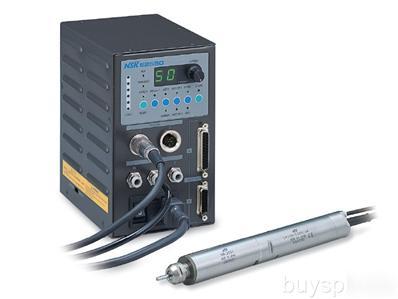

Nsk Nakanishi E2550 Series NC / CNC Lathe Complete Set
NC / CNC LATHE & AUTOMATION SOLUTIONS E2550 SERIES ELECTRIC SYSTEM COMPLETE SET
The E2550 Series is capable of up to 50,000 min-1(rpm) and employs a high-speed, ultra-quiet brushless motor.
2 motors can be connected (No Simultaneous Operation).
-NE145 Control Unit; Power Cord Air Hose with filter (K-251): 6 mm x 6 ft Bracket (2 pcs.) Connector Cap Power Cord Grip Air Plug Screw (7 pcs.)
-EM25N-5000-J4 Brushless Motor(Cord with Quick Disconnect); Cord with Quick Disconnect Air Coolant Hose Reducer Wrench (22 x 27) : 1 pc.
NE145 Control Unit Specifications
EM25N-5000-J4 Brushless Motor Specifications
The AL-0201 is a Clean air supply unit for the E2550 Series control unit. Dust and moisture in the compressed air are eliminated by the filter in the first stage and regulator provides accurate and stable air to the control unit.
Max. 2 motor can be controlled sequentially. 2 motors can not be run simultaneously. (Second motor optional)
[6] Motor Selector Switch (MOTOR1/MOTOR2)
[7] Rotating Direction Selector Switch (FWD./REV.)
[11] Rotating Speed Display (SPEED)
[12] Speed Control Potentiometer
The E2550 Series motor is a brushless DC motor utilizing hall elements and rare-earth magnet in the rotor. The Motor develops 125W.
The brushless DC Motor designs allows for excellent reliability and durability. The EM25N-5000-J4 can be steplessly controlled up to 50,000 min-1(rpm).
Air-cooled motor uses a small volume of air (1.2CFM) to prevent heat buildup and allow long continuous operation. Regulate the cooling air supply between 21-35PSI. If the air pressure is too low the control will limit the maximum motor speed to 30,000 min-1(rpm) for safety.
Clean dry air is required to cool the motor and protect the spindle from contaminants. Use a filter and regulator.
(Proper air pressure 21~35PSI) (Use Air Line Kit AL-0201)
The E2550 Series is equipped with a protective function to stop the spindle rotation automatically in case of overload ensuring safe and smooth operation. When the protective circuit is activated, an error code is shown on the digital display. In case of an air supply failure, the protective circuit limits the motor/spindle to 30,000 min-1(rpm) maximum.
2 Motors can be connected ( Second Motor Optional )
Up to 2 motors may be connected to 1 control unit and operated sequentially making this system very easy to use when multiple live tools are required.
Special Safety Version Available ( Optional )
The safety relay utilizes normally open contacts. The emergency stop signal lines must be supplied with power to hold the safety relay contacts closed and allow the control unit to supply power to the motor. Any system errors, trouble with the machining center or the connections between the E2550 Series control unit and the machining center's controller will cause the relay contacts to open and the E2550 Series motor or stop.
