Triplett -a volt-ohm-mil- ammeter multimeter model 630

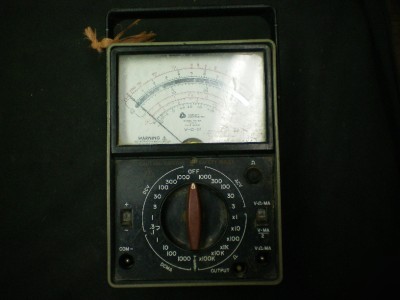

TRIPLETT -A Volt-Ohm-Mil- Ammeter Multimeter Model 630
Glass meter window for added chemical resistance
Two input jacks to minimize error
AC Voltage frequency response to 40kHz typical
Resistance measurement of 30V / 100M on Rx100K
Ranges: 0.3 (16,667 ohms / Volt) 3,12,.60,300,600
Ranges: 3,12,.60,300,600 (5k ohms / Volt)
Ranges: 1k, 10k, 100k, 1M, 100M Ohms
Center Scale: 4.4 ohms on lowest range
Accuracy: 1.5% of Scale Length
Decibels:-20dBm to +57dBm (1mW, 600 ohms)
