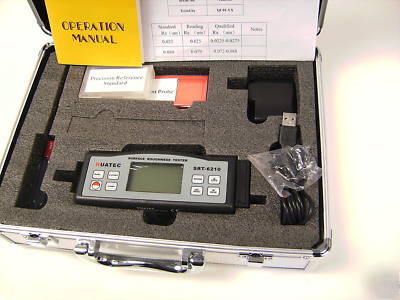

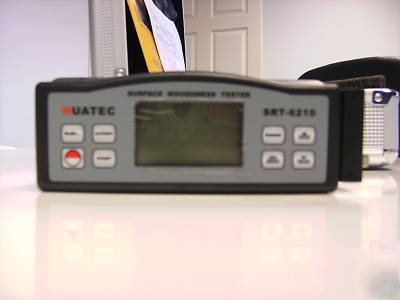

Surface roughness tester -srt 6210
This instrument is compatible with four standards of site to measure surface roughness of various machinery-processed parts, calculate corresponding and clearly display all measurement parameters. When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier.
*Manual or automatic shut down. The tester can be switched off by pressing the Power key at any time. On the other hand, the tester will power itself off about 5 minutes after the last key operation.
* Display: 4 digits, 10 mm LCD, with blue backlight
* Parameters: Ra, Rz, Rq, Rt
* Measuring Range: Ra, Rq: 0.005-16.00um/0.020-629.9uinch, Rz,Rt: 0.020-160.0um/0.078-6299uinch
* Accuracy: Not more than 10%
* Fluctuation of display value: Not more than 6%
* Test Principle: Inductance type
* Material of Probe Pin: Diamond
* Dynamo-measurement of Probe: 4mN(0.4gf)
* Vertical Radius of Guiding Head: 48mm
* Maximum driving stroke: 17.5mm/0.7inch
* Cutoff length (l): 0.25mm / 0.8mm / 2.5mm optional
* sampling length = 0.25mm Vt=0.135mm/s
* sampling length = 0.8mm Vt=0.5mm/s
* sampling length = 2.5mm Vt=1mm/s
* Evaluation length : 5 cut-off
* Power Li-ion battery: rechargeable
* Operating conditions: Temp. 0~50?, Humidity <80%
* Size: 140x57x48 mm (5.5x2.2x1.9 inch)
* Cable and Software for RS-232
