Snow ta-4 automatic tapping machine

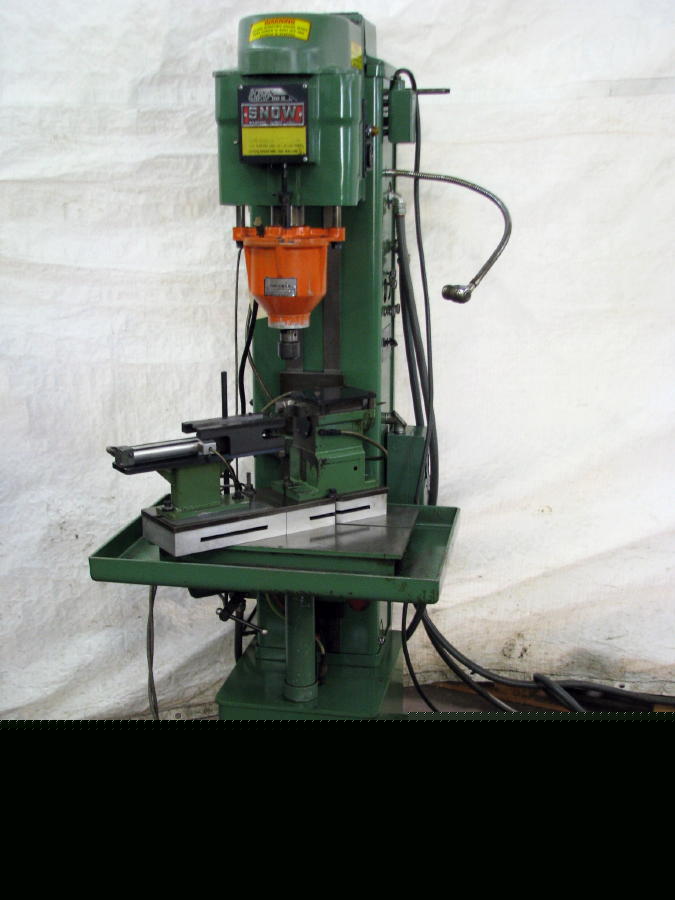

Snow TA-4 Automatic Tapping Machine
Snow Automatic Tapping Machine
This machine was built new in 1972 as a model DR-3 drill
and was converted in 1986 to a TA-4 tapping machine.
Tapping Capacity: 1/4" - 3/4"-16
Max. Dist. Spdl. Nose to Table Top: 17-1/2"
Spindle Speeds (8): 250 - 980 RPM
Snow Collets: 5/16", 3/8", 1/2" & 5/8"
Vertical Adjustment of Table: 9-1/4"
Table Working Surface: 13-3/8" x 21"
Bilvern Deemstop System E Spindle Monitor/Protector
Snow Tapping Head, Model #4, Serial # 386
Snow Model 612 Self-Centering Air Vise
Snow RamCentric Linear Parts Feeder
1 HP 2-Speed Spindle Motor 220/3/60
