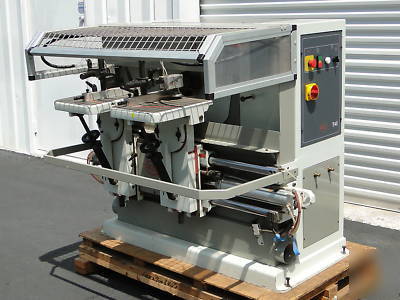

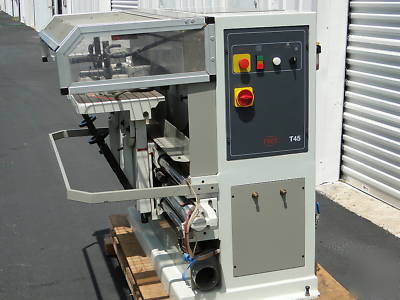

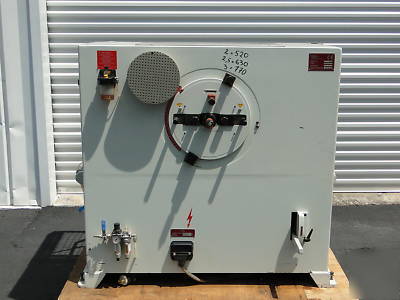

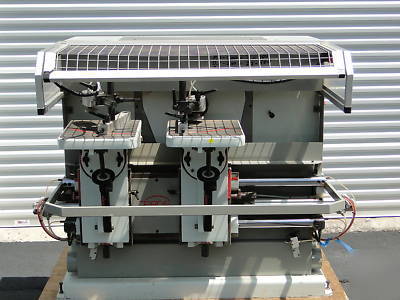

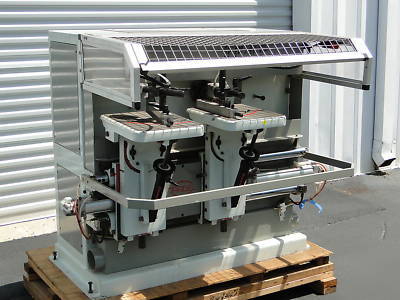

Pade T45 double end auto round tenoner wood machine


* Pade double table round end tenoner machine.
* We also have the mdo mortiser in another listing if you need both.

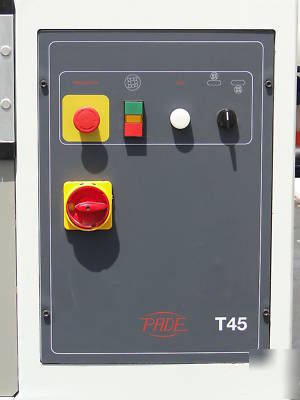

Capacity round end tenoner max. length 100 mm. Max. thickness 30 mm. Max. depth 50 mm. Work table adjustments vertical 100 mm and traversal 50 mm. Front tilting 20 s. Radial inclination 15 s. Workpiece fence rotation 45 s. Motor for cutter rotation 2.2 kW. Motor for cutter revolution 0.75 kW. Worktables in cast iron. Sliding on large diameter round bars by means of special antifriction self-lubricating guides. Independent adjustment of the two worktables. Easy and quick adjustment of tenon width and thickness due to mechanical digital readouts (SIKO) allowing an immediate and precise control of tenon dimensions. Working cycle controled by PLC with auto-diagnostics on all electric components to locate any possible faulty areas.
